Carrier console

Holding force not only for devices

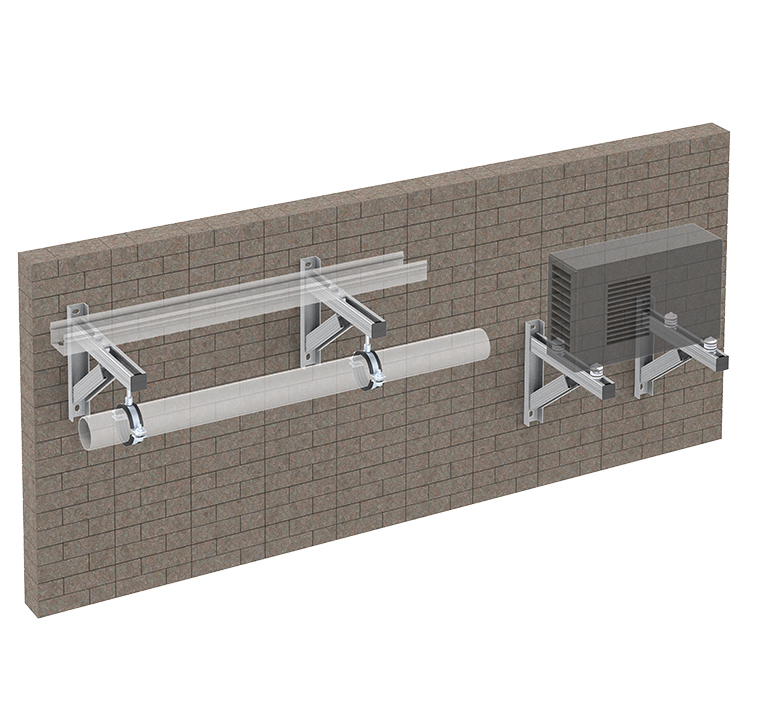

The MEFA carrier console provides you with a strong solution for mounting aggregates, pipelines and cable trays indoor and outdoor. It offers a secure hold on concrete and masonry.

Versatile in use: Product details

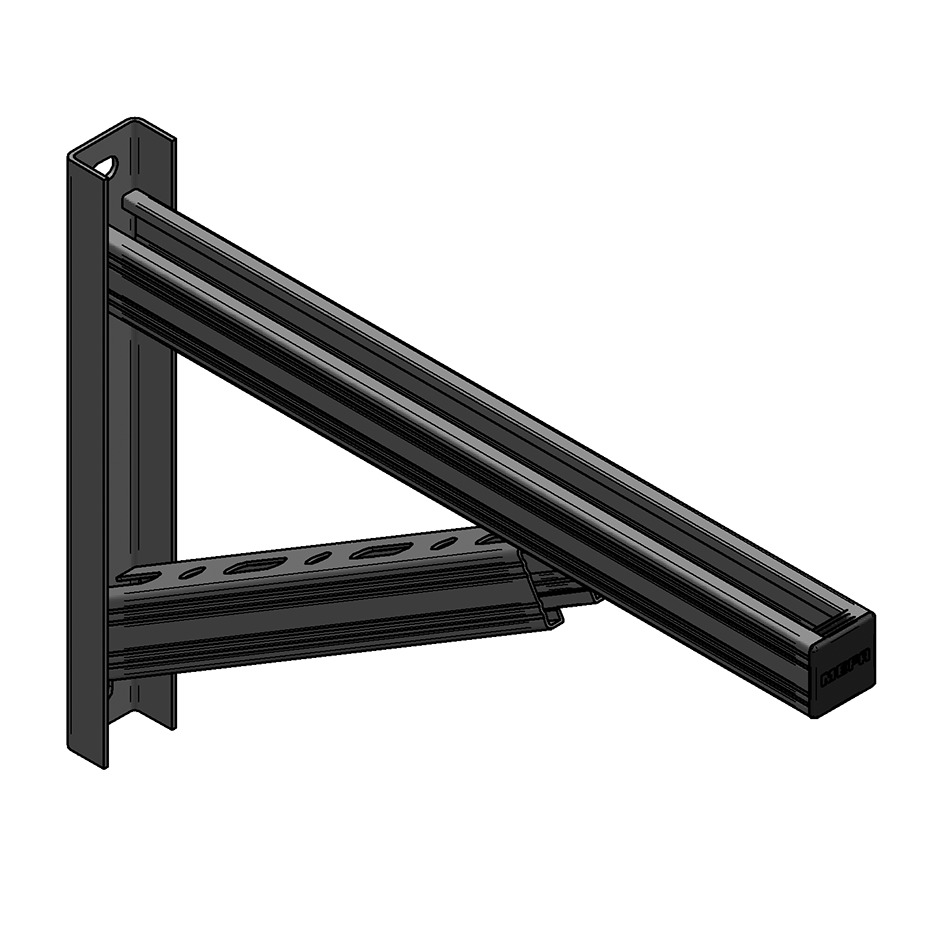

Now with the C-profile rail 45/45/2.0: Now you can use all components, threaded and toothed plates from the Stex 45 quick fixing system, depending on the application. By changing from the previously used C-profile rail 36/40/2.0, it was possible to achieve an increase in allowable loads of approx. 20% with a more modern look. In addition, the interlocking of the 45 system ensures a higher push-out load.

Dimension U-steel: 51,5x29,5x3,0 mm
Dimension profile rail: 45x45x2,0 mm
Material: Steel
Surface: Hot-dip galvanized
Length: From 420 to 840 mm
With enclosed protecting caps

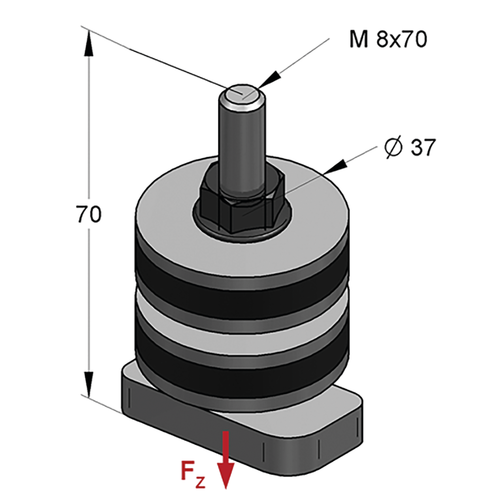

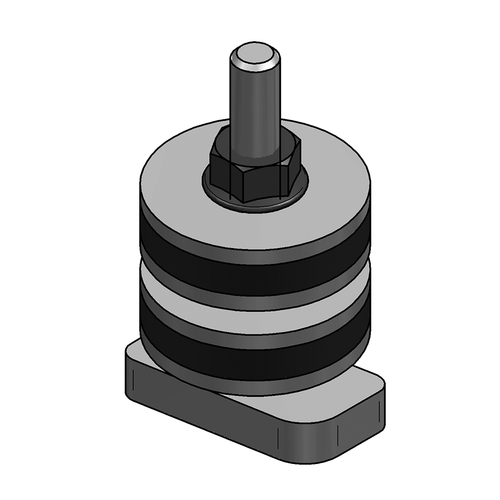

Accessories: Sound absorption element with hammer head

THE ADVANTAGES AT A GLANCE

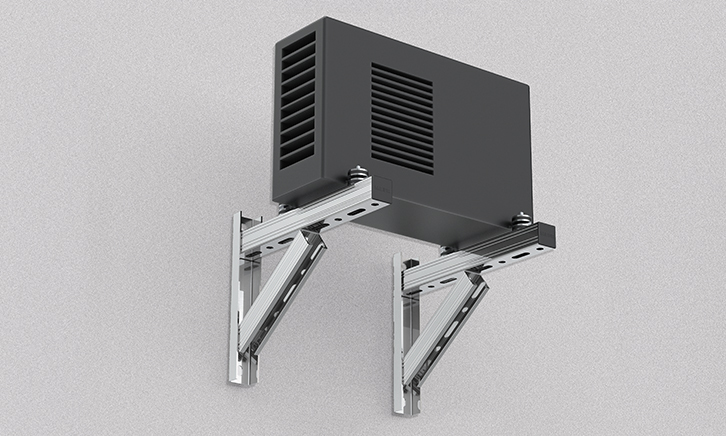

High load-bearing capacity and therefore ideal for mounting air conditioning and ventilation units
Due to the hot-dip galvanized surface best suited for outdoor use
Can be used on masonry without any problems due to the large hole spacing
The MEFA C-profile used, ensures an easy installation of pipes and cable trays
