Fixing system 45
Think in system

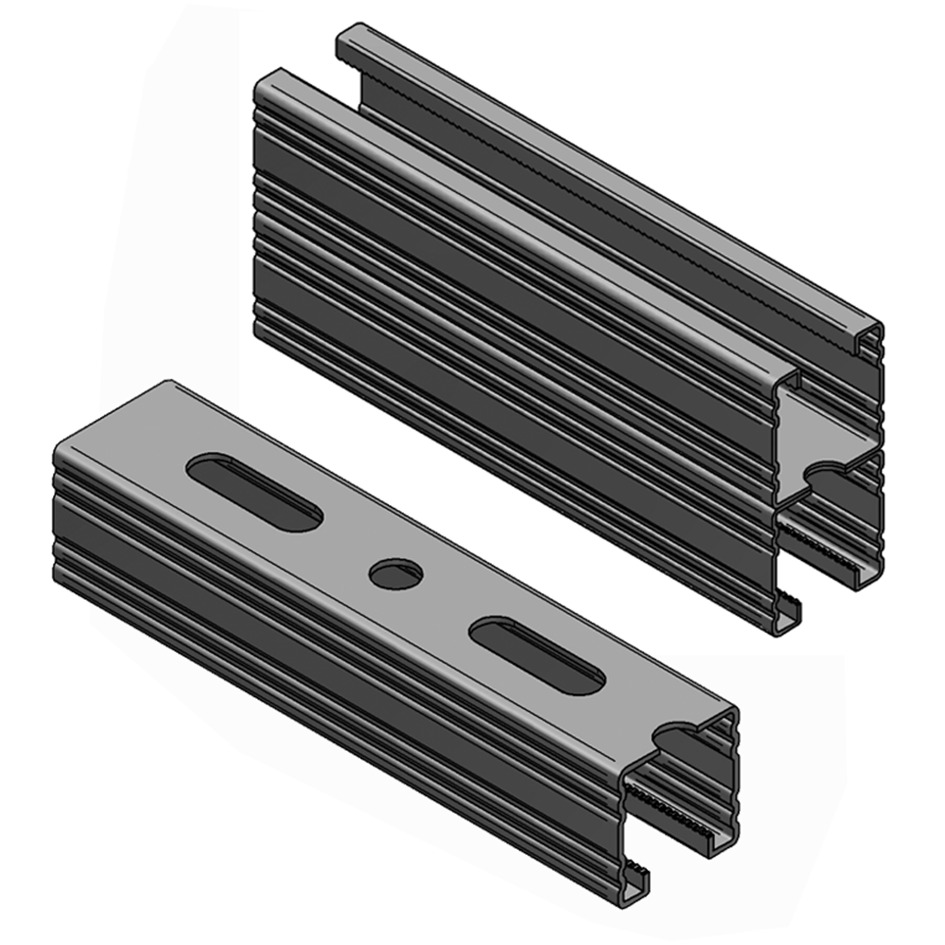

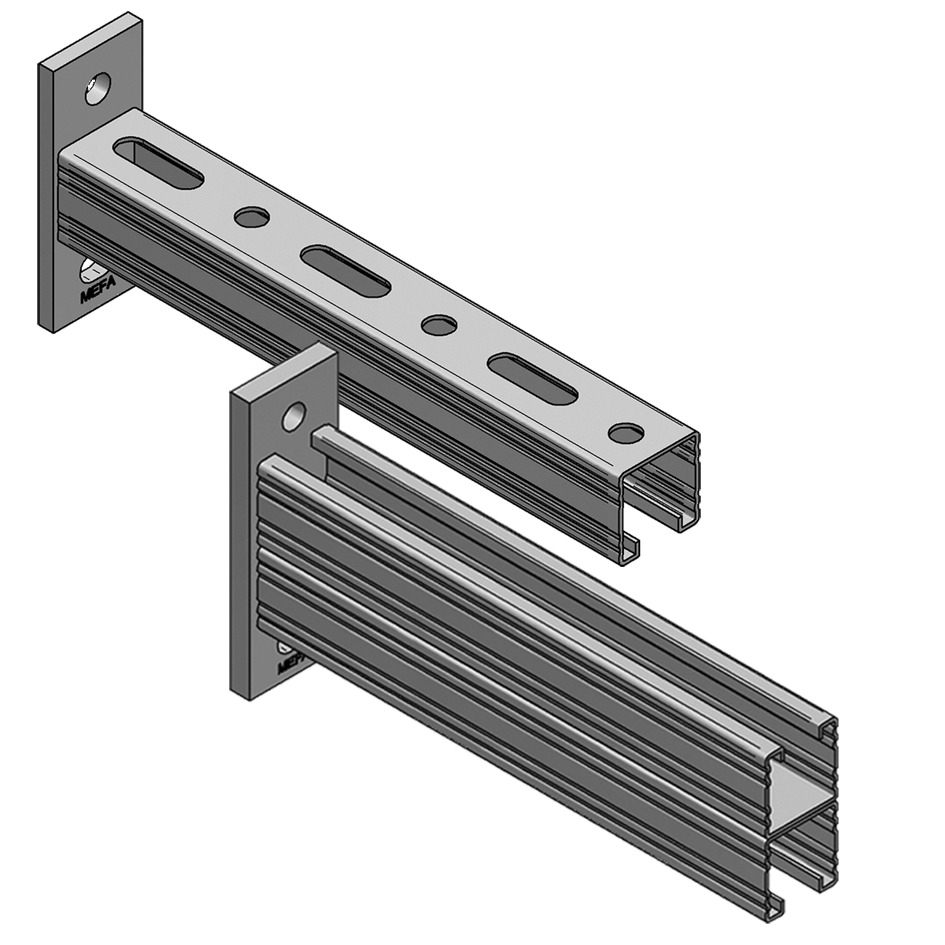

POWER CLASS PROFILE RAIL 45

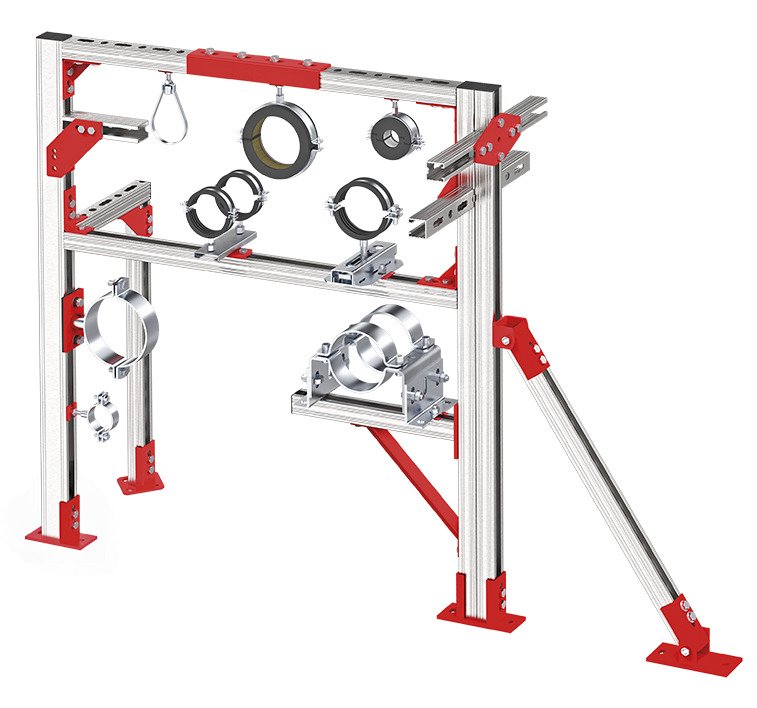

The MEFA rail system 45 contains all parts and system solutions for successful rail fixing. The unique design achieves an enormous increase in performance.

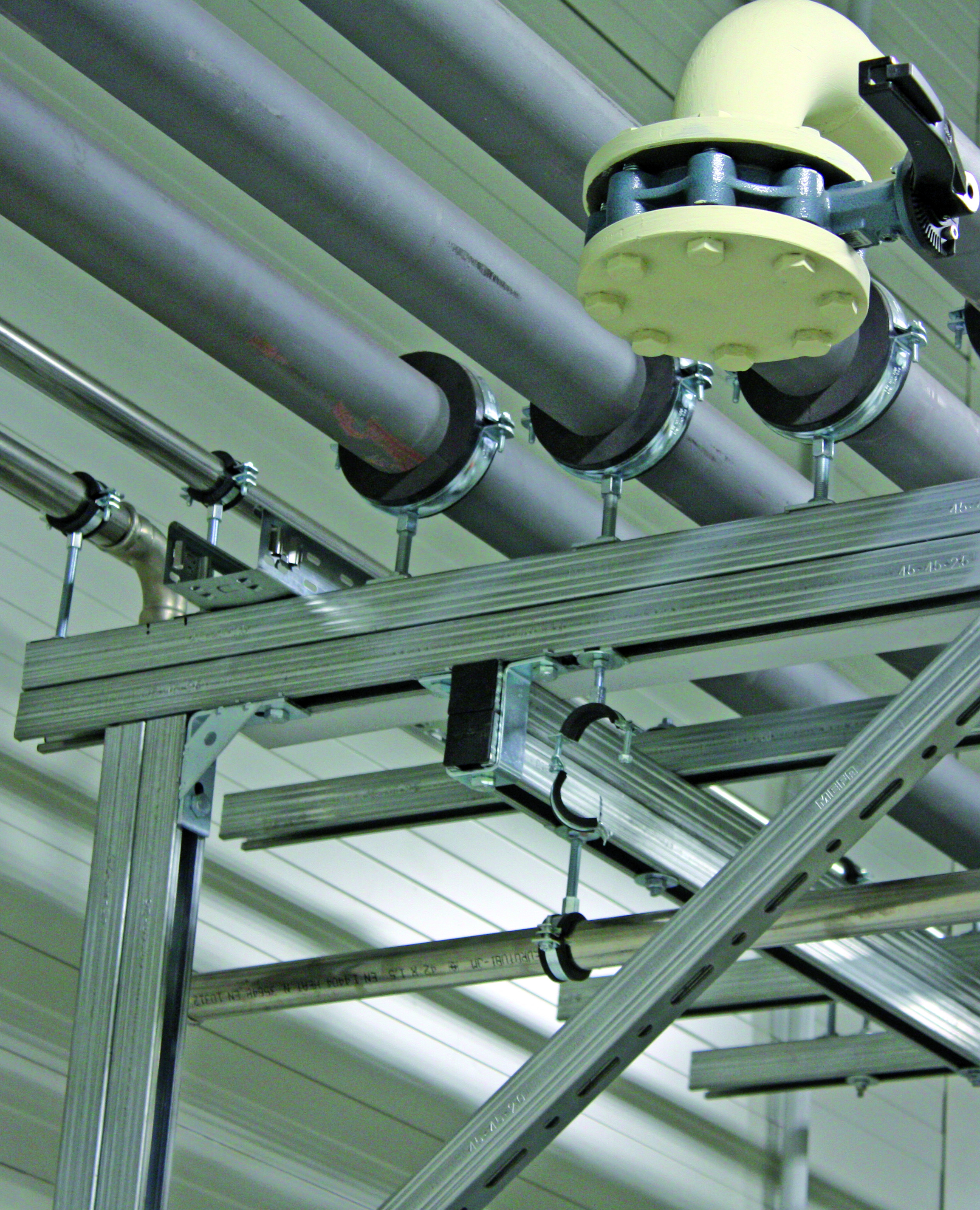

Combined with the proven Stex 45 quick-fixing system, this creates an ideal solution for pipe construction.

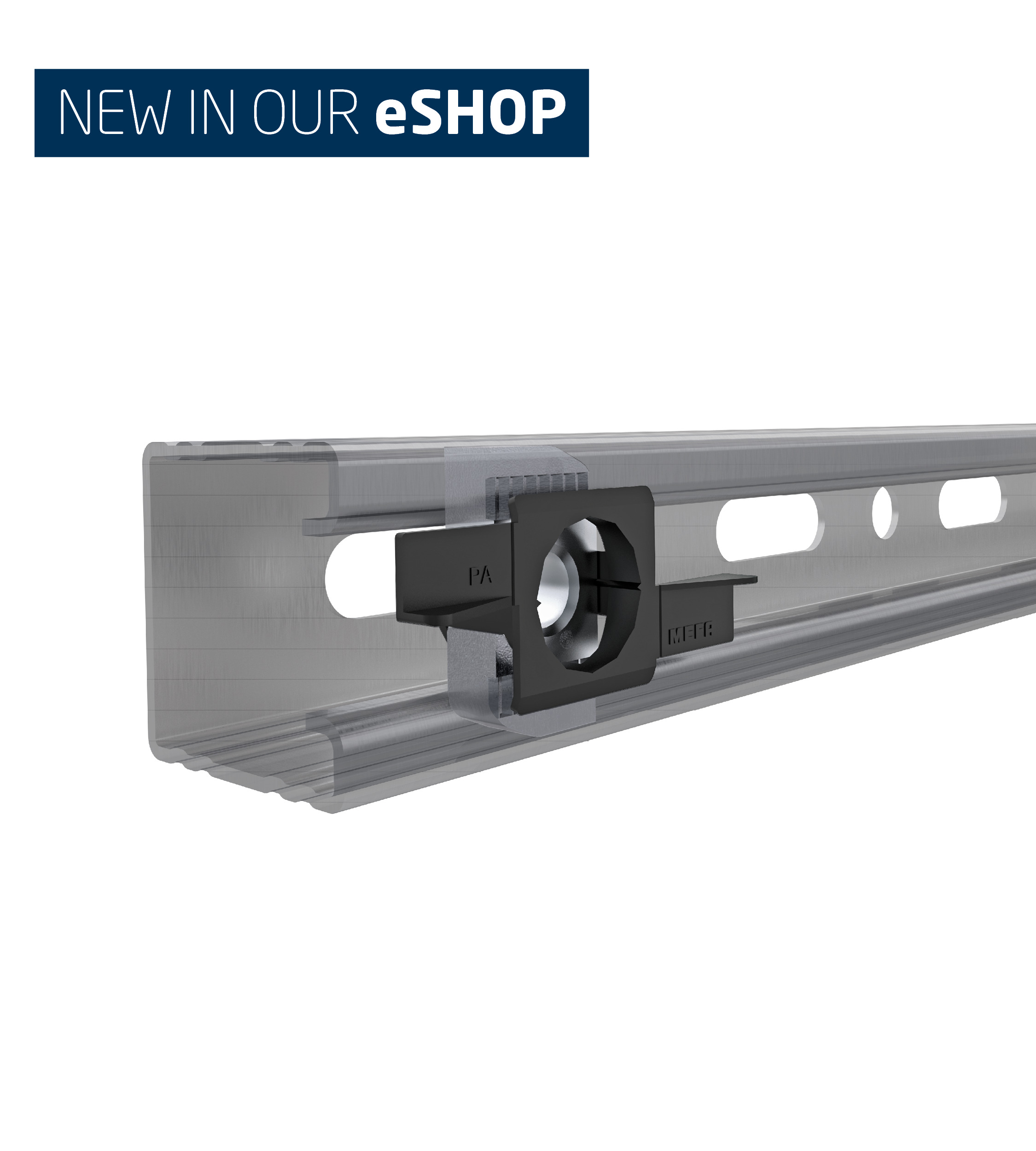

STEX 45 MP-S
Our new mounting plate for the Stex 45 quick fixing system:
Insert mounting plate, turn 90°, position, attach component and tighten screw
- No complicated insertion of tooth bolts/plates
- Automatic retention in the MEFA mounting rail

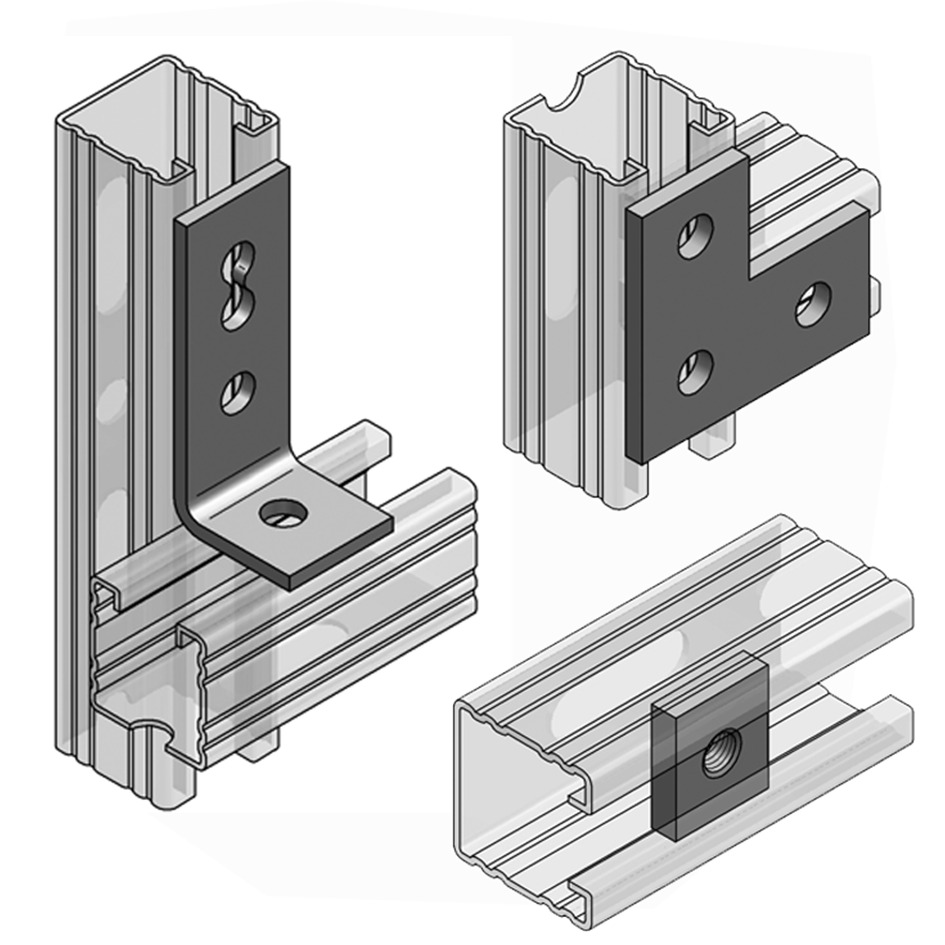

- Simplifies the assembly of add-on parts such as sliding elements or connecting components in rail constructions
-
-
Tooth plate made of zinc-nickel enables the use of
- Indoors with pre-galvanized 45 mm profile rails
- Outdoors with 45 mm hot-dip galvanized profile rails
THE CRUCIAL FACTOR: PERFORMANCE!
Compared to the 41/41 rail, the 45/45 rail can achieve up to 20% more load capacity.
The advantages at a glance:
- Low material consumption and reduced transport weight
- All profile rails are pre-galvanized or hot-dip galvanized
- Very pronounced toothing and unique design
- All profile rails 45 are certified according to RAL
- Wide product range with RAL-quality assured products
THE NEW BENCHMARK FOR PROFILE RAILS QUICK-FIXING SYSTEM STEX 45
The advantages at a glance:
- Quick and uncomplicated one-hand mounting, no separate parts
- Completely made of steel, thereby break-proof and UV-resistant
- High loading capacity due to a form-locking connection with profile rail
- After placing, Stex can be positioned without any problems, even during the mounting of ascending pipes
- RAL-quality assured*
- Stex 45 threaded plate GP: Connection of pipe clamps with any lengths of threaded connections

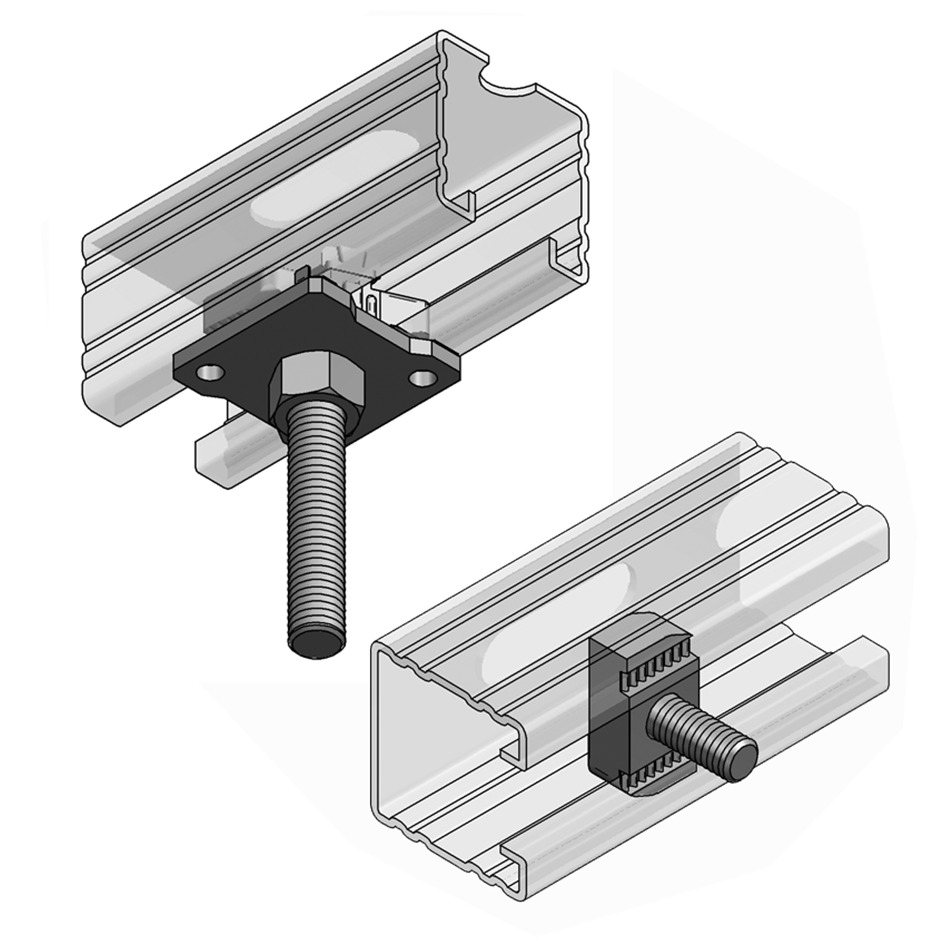

- Stex 45 threaded bolt GB: Mounting of pipe clamps without further accessories, variable height adjustment
- Stex 45 mounting plate MP: Ideal for the mounting of connection parts due to a very flat construction
- Stex 45 mounting bolt MTB: Ideal for the mounting of connection parts due to a very flat construction, quick insert and positioning due to an integrated threaded bolt
- *except Stex 45 threaded bolt GB
- Our video shows the different work steps and requirements for successful assembly.
