Wire rope L-Fix

Ventilation and air conditioning technology

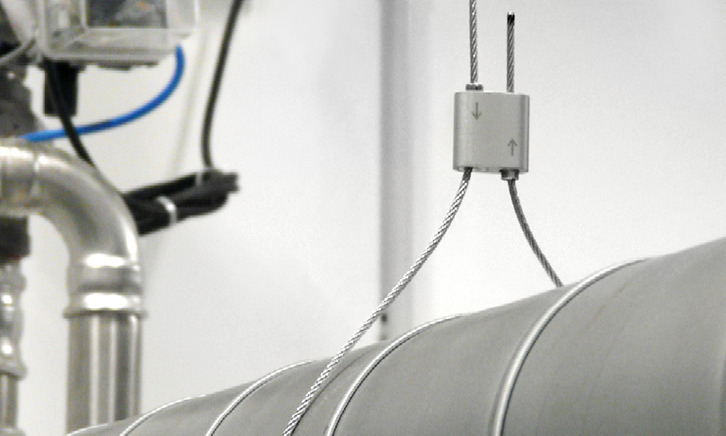

THE ADVANTAGES AT A GLANCE

Fast tool-free suspension
Flexible and stepless height adjustment
Particularly advantageous for inclined ceilings
Aesthetic appearance
Low weight

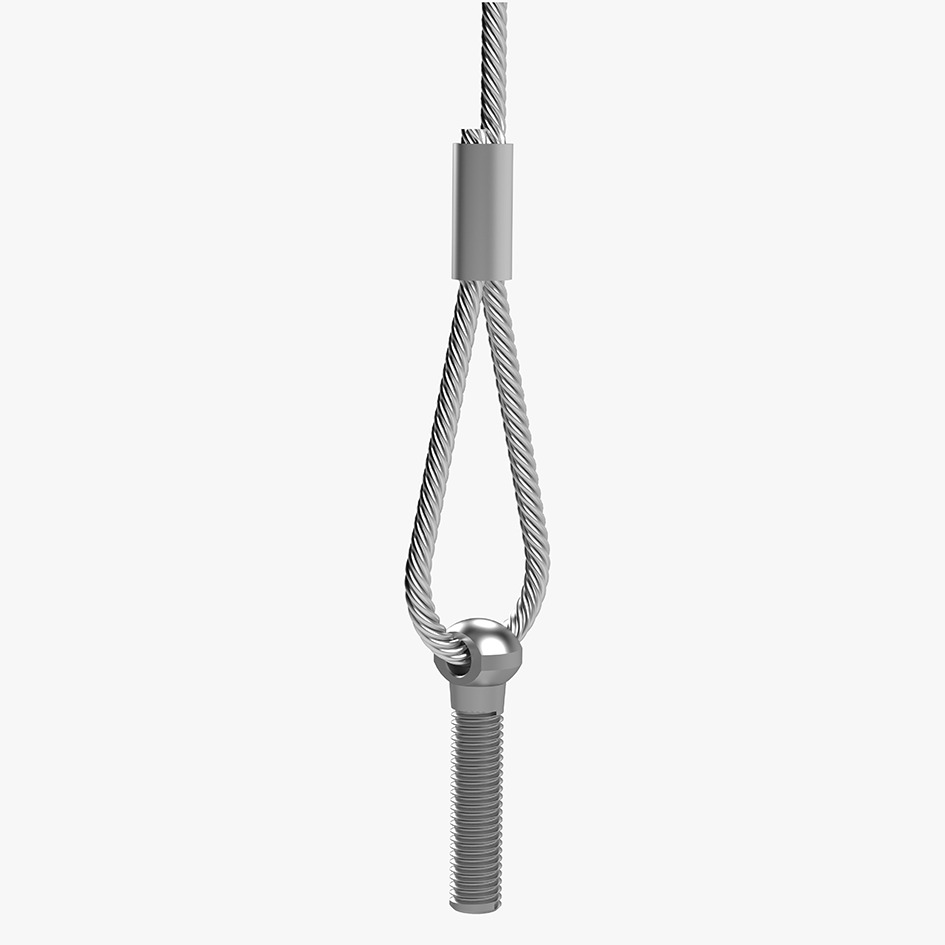

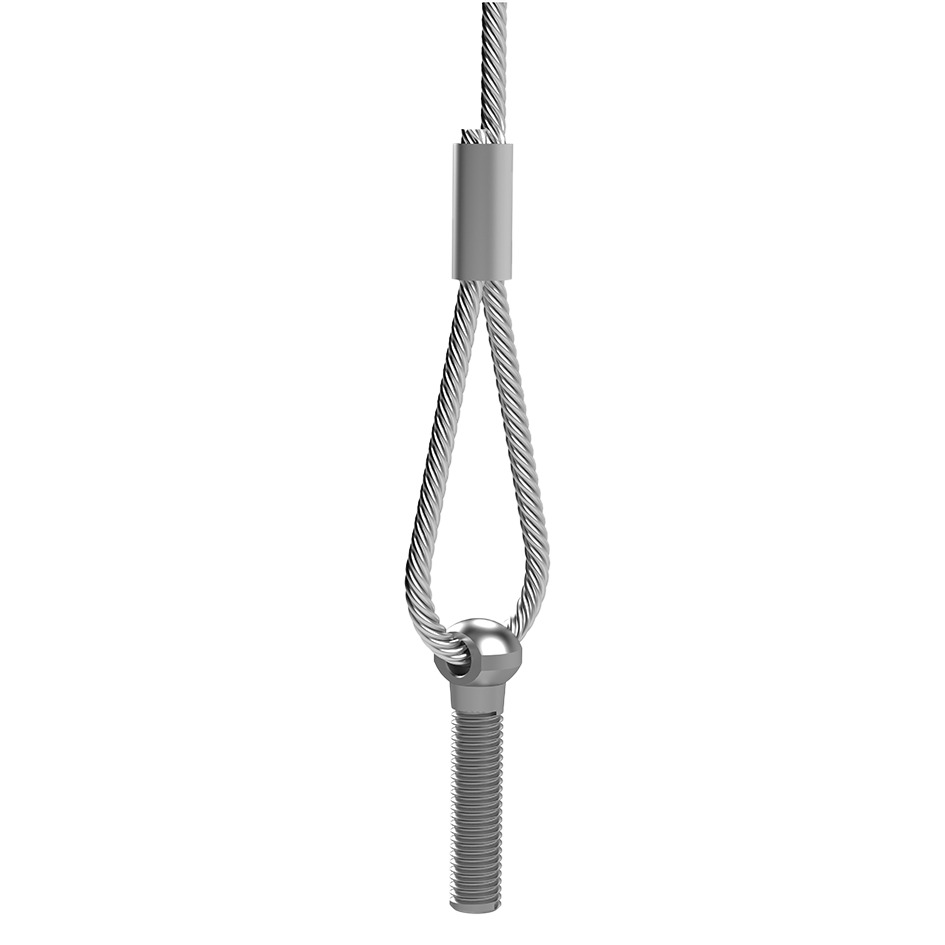

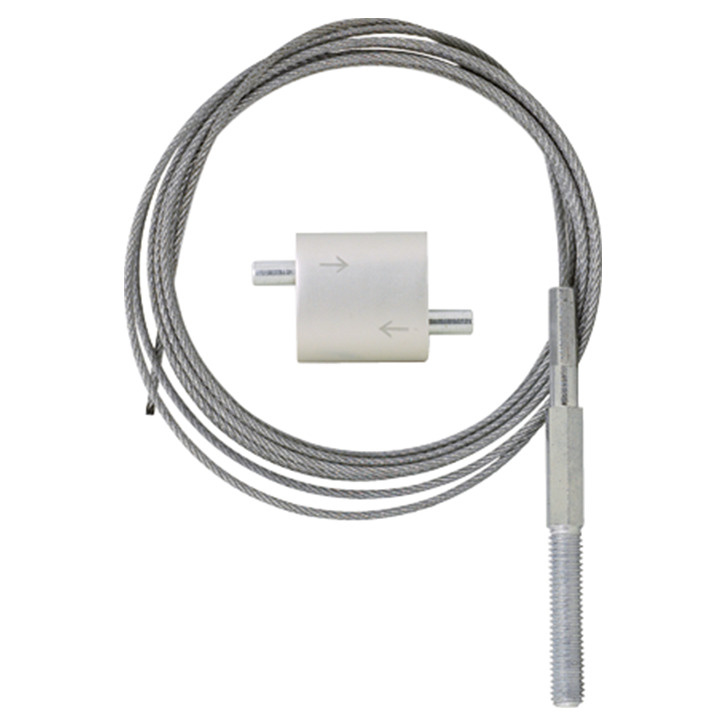

WIRE ROPE L-FIX THREAD

For fixing in impact anchors, threaded sleeves, MEFA-profile rails with STEX threaded plates

Wire rope galvanized
Loading data with safety factor 5:1
Set inclusive wire rope and lock
Thread: M8
Wire-Ø: 2,5 mm
Length Thread: 40 mm
Length: 3 m (other wire rope lengths on demand)
Maximum load: 0,82 kN

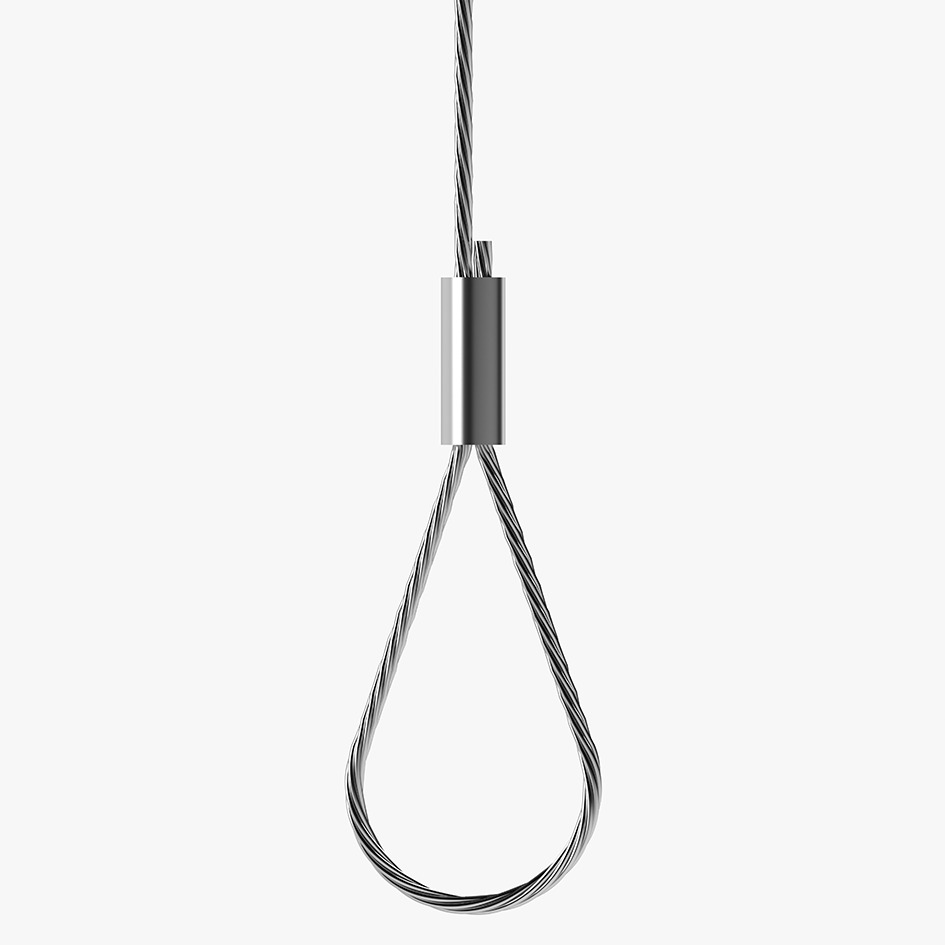

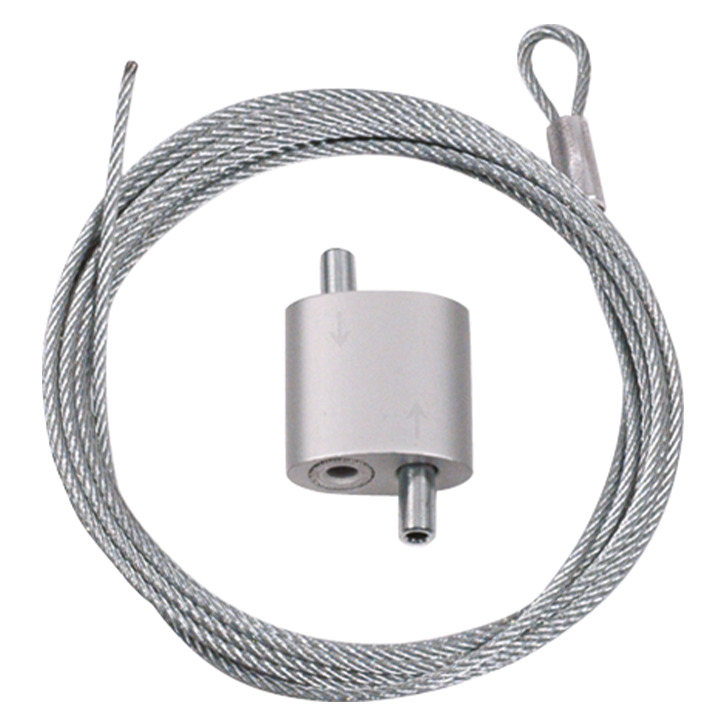

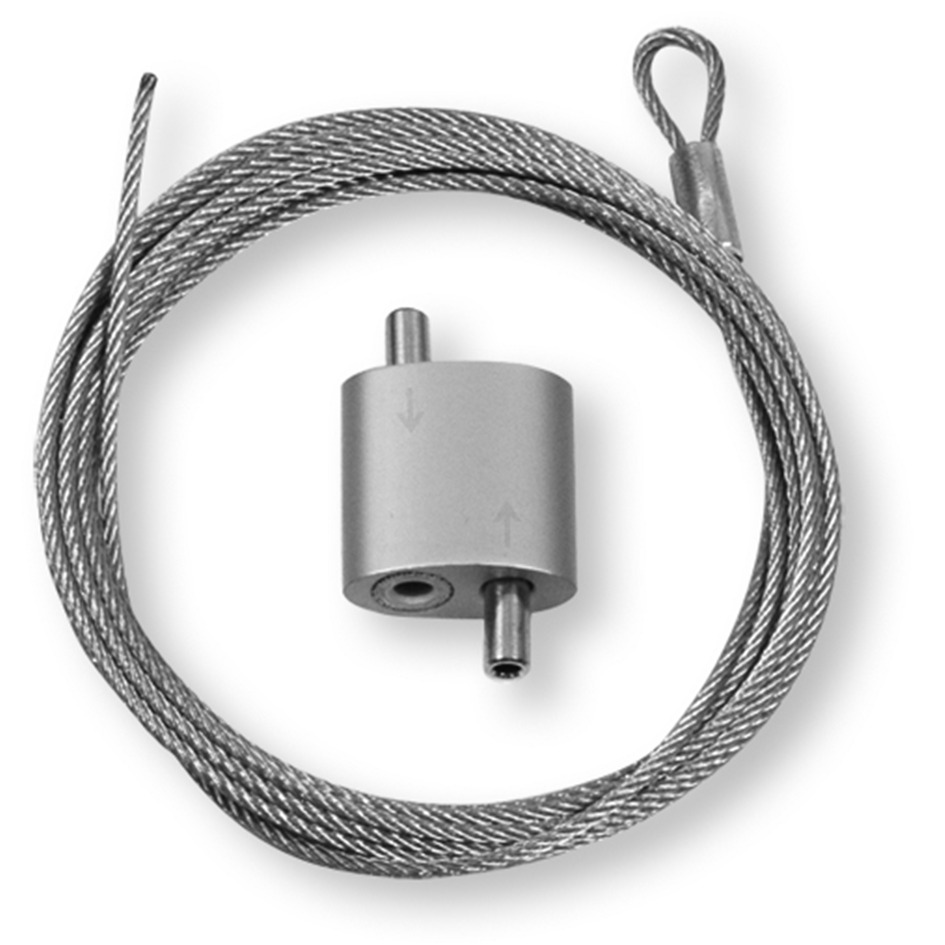

WIRE ROPE L-FIX LOOP

For looping around girder structures of steel, wood and concrete

Wire rope galvanized
Loading data with safety factor 5:1
Set inclusive wire rope and lock
Wire-Ø: 1,5 and 2,5 mm
Length: 3 m (other wire rope lengths on demand)
Maximum load: 0,32 and 0,82 kN

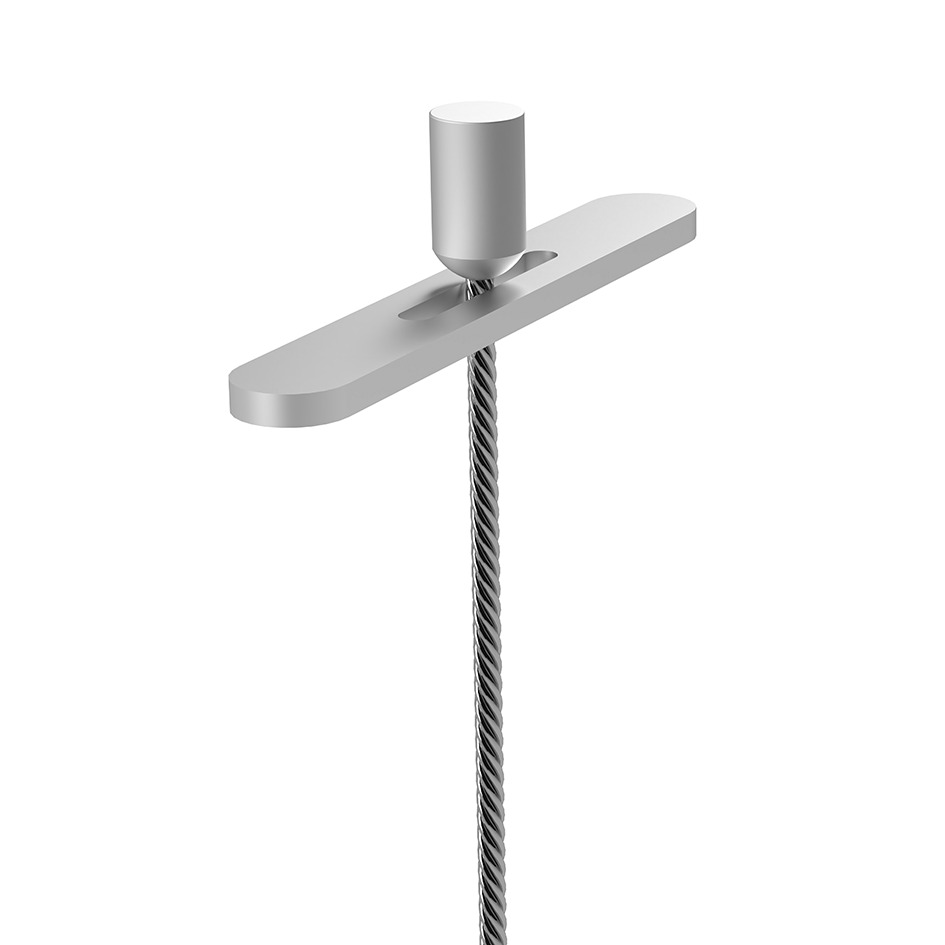

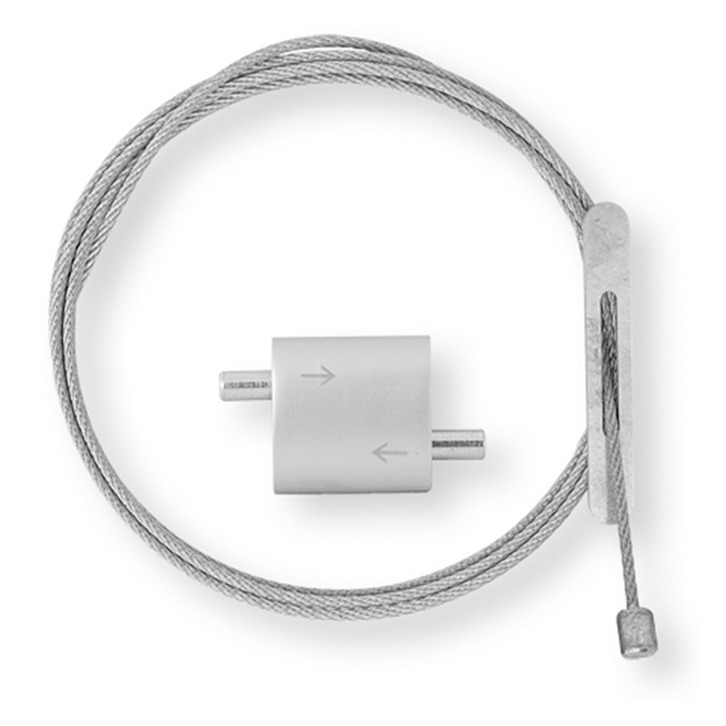

WIRE ROPE L-FIX TOGGLE

For fixing in trapeze sheets

Wire rope galvanized
Loading data with safety factor 5:1
Set inclusive wire rope and lock
Wire-Ø: 1,5 mm
Length: 3 m (other wire rope lengths on demand)
Maximum load: 0,32 kN
Drill hole-Ø: 6 mm

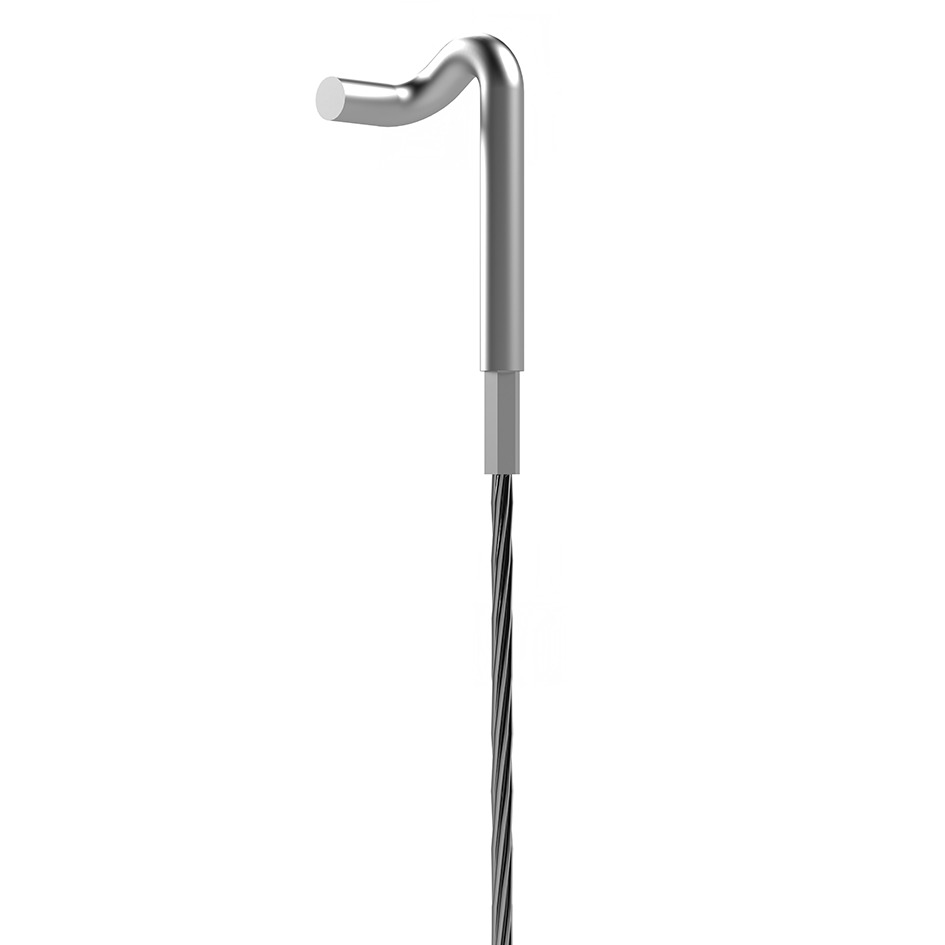

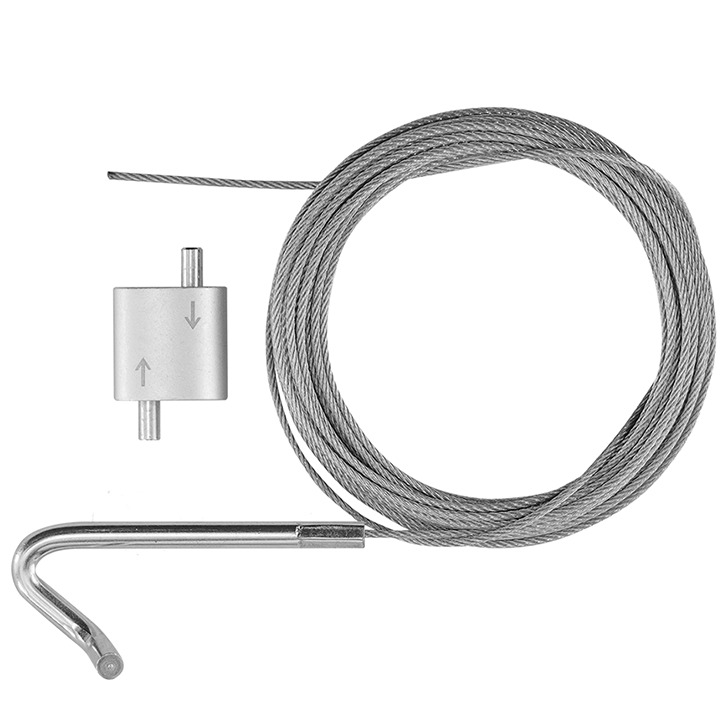

WIRE ROPE L-FIX TRAPEZE HOOK

For hooking into the side of trapezoidal sheets.

Wire rope galvanized
Loading data with safety factor 5:1
Set inclusive wire rope, trapeze hook and lock
Wire-Ø: 2,5 mm
Hook-Ø: 2,5 mm
Length: 3 m (other wire rope lengths on demand)
Maximum load: 0,82 kN
Due to the double bent hook, it is secured in the trapezoidal sheet against slipping out.

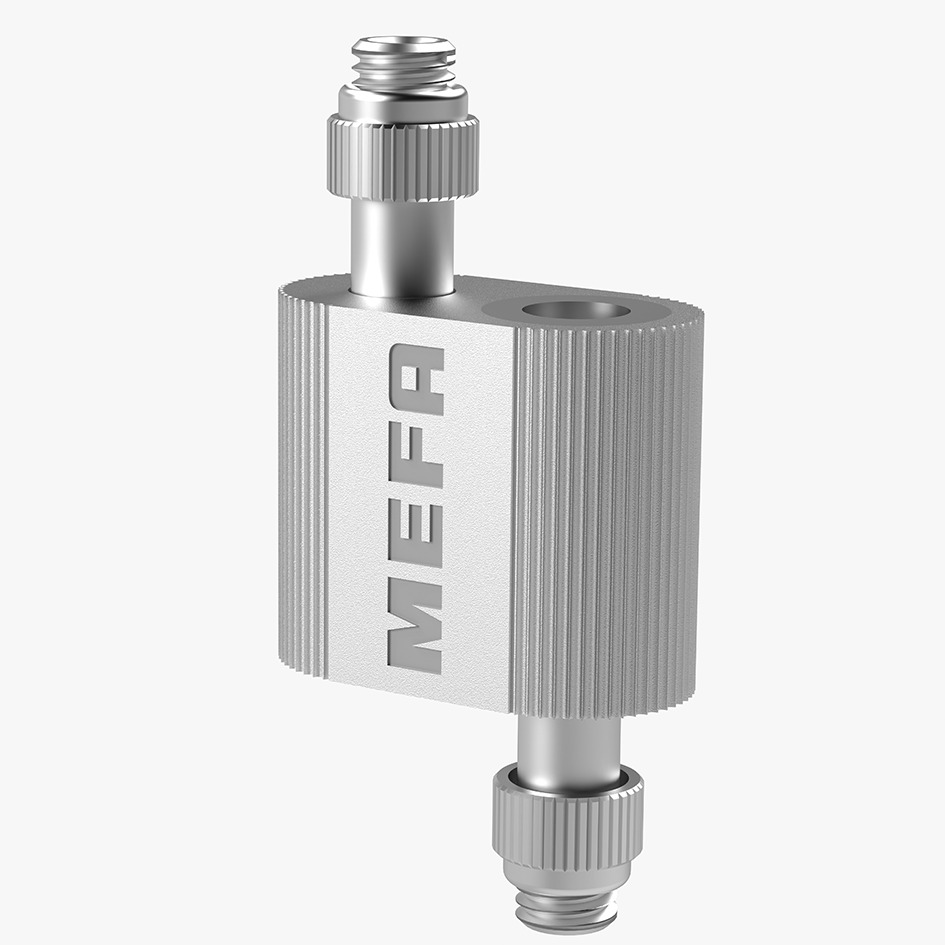

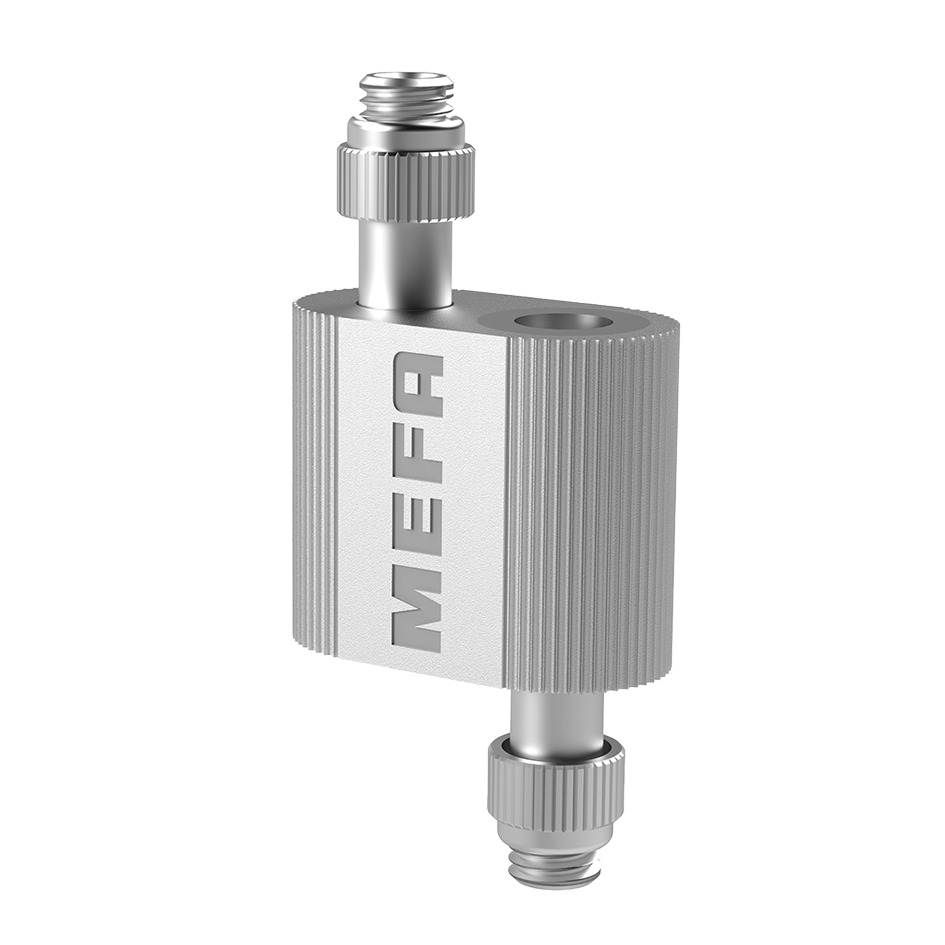

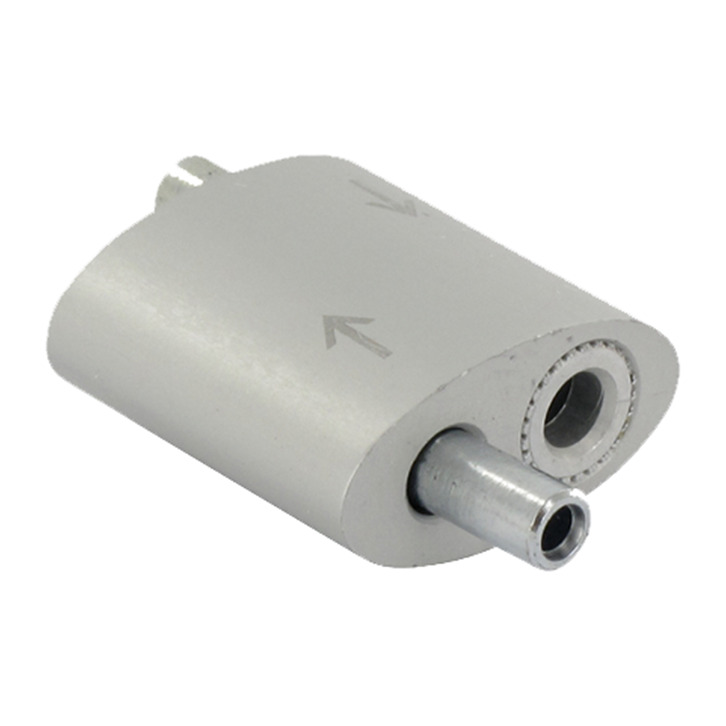

WIRE ROPE L-FIX LOCK

Fast tool-free suspension
Flexible and stepless height adjustment
Particularly advantageous for inclined ceilings
For wire-Ø: 1,5 and 2,5 mm
Maximum load: 0,32 and 0,82 kN

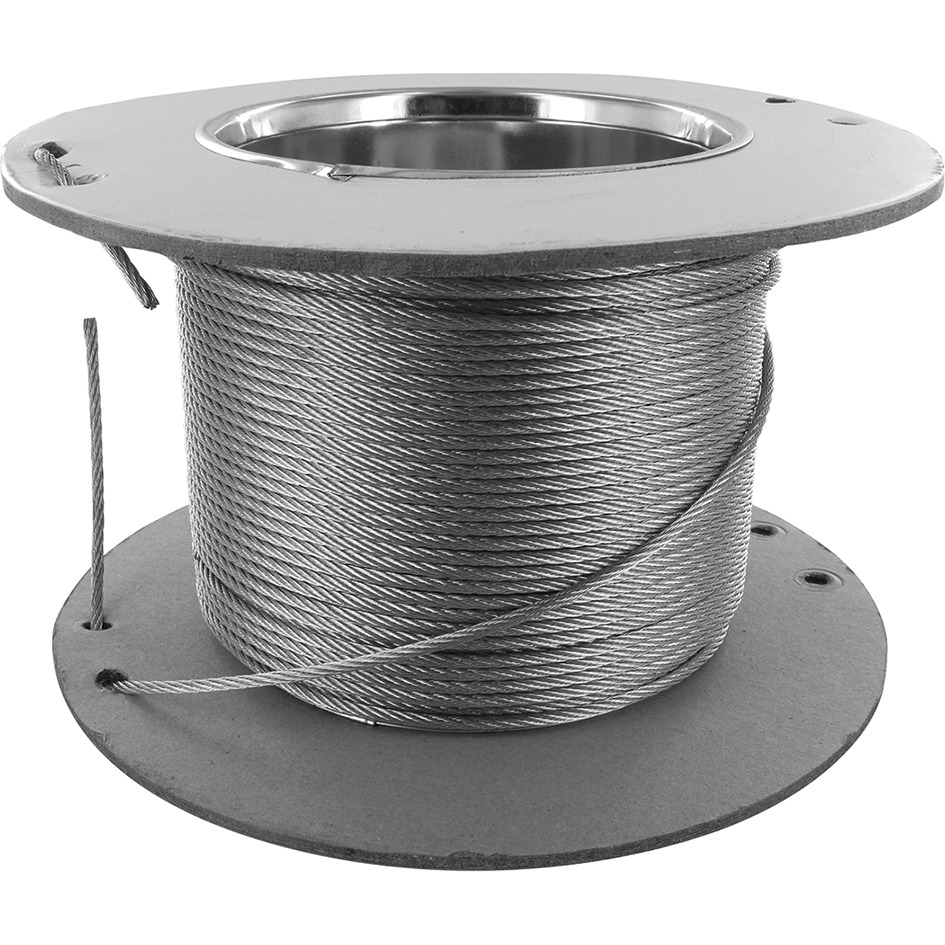

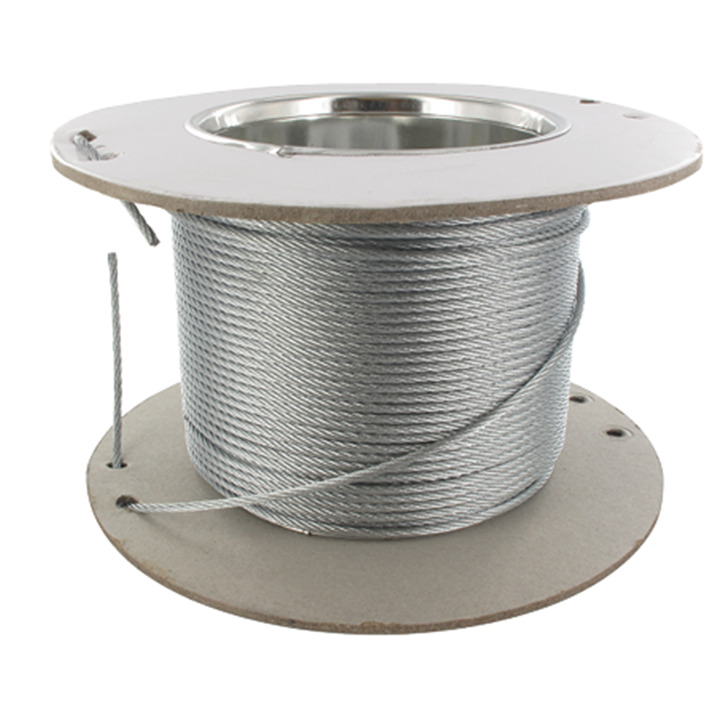

WIRE ROPE L-FIX SPOOL

To create individual rope lengths

Wire rope galvanized
Loading data with safety factor 5:1
Wire-Ø: 1,5 and 2,5 mm
Length: 150 m
Maximum load: 0,32 and 0,82 kN

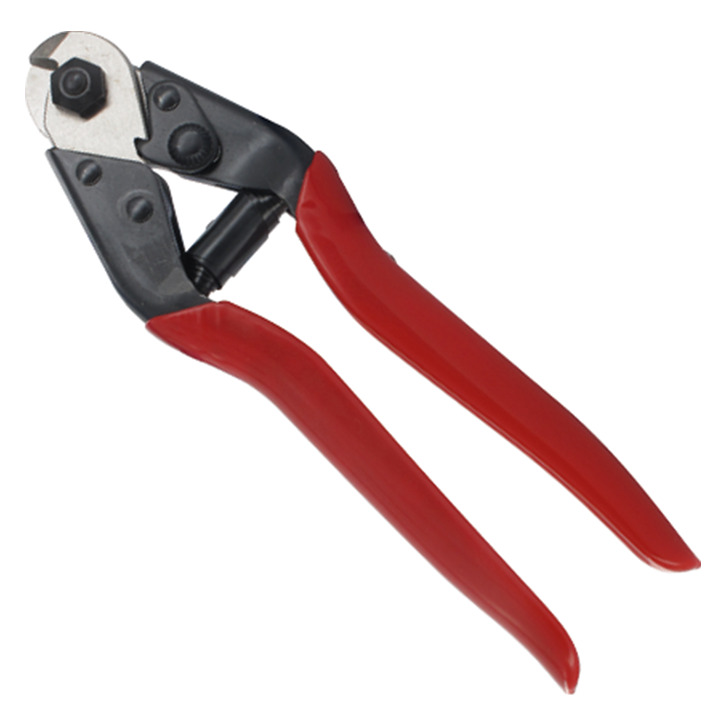

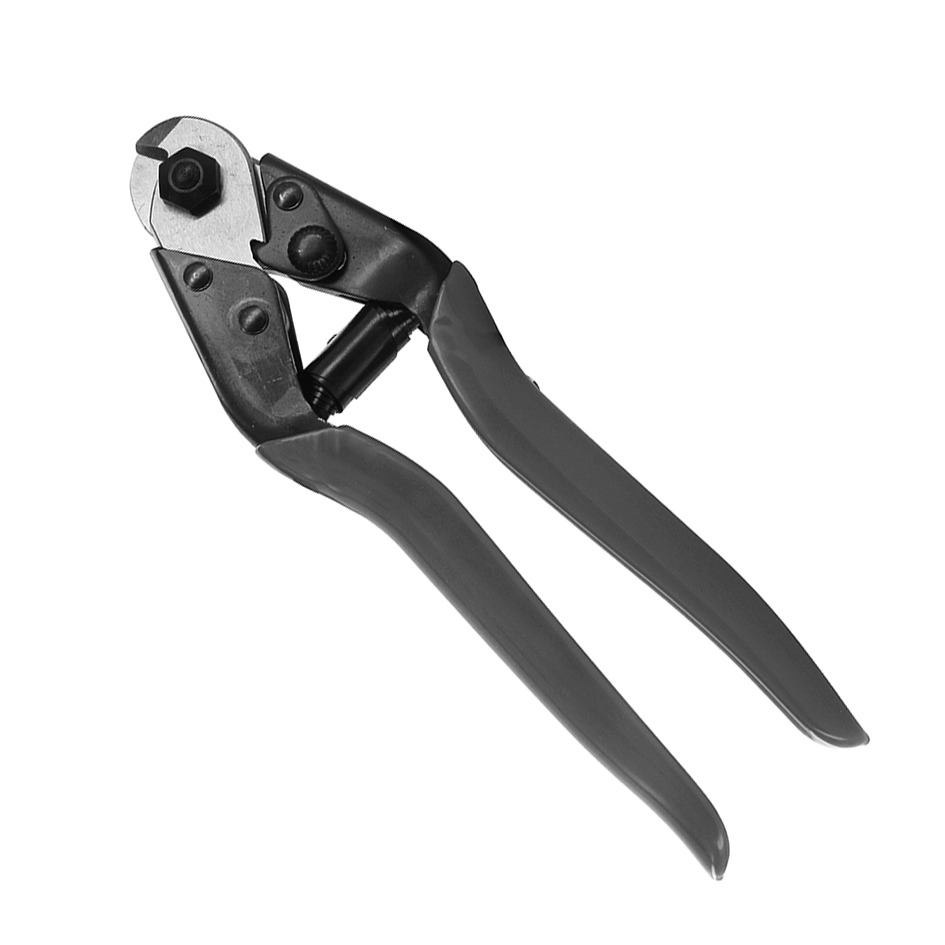

WIRE ROPE L-FIX CUTTER

For easy separation of steel galvanized wire ropes or stainless steel up to Ø 3 mm

No splitting of wire ends when cutting
Minimal effort due to large leverage
Ergonomic handle and opening spring for easy work
Lock hook for safe transport

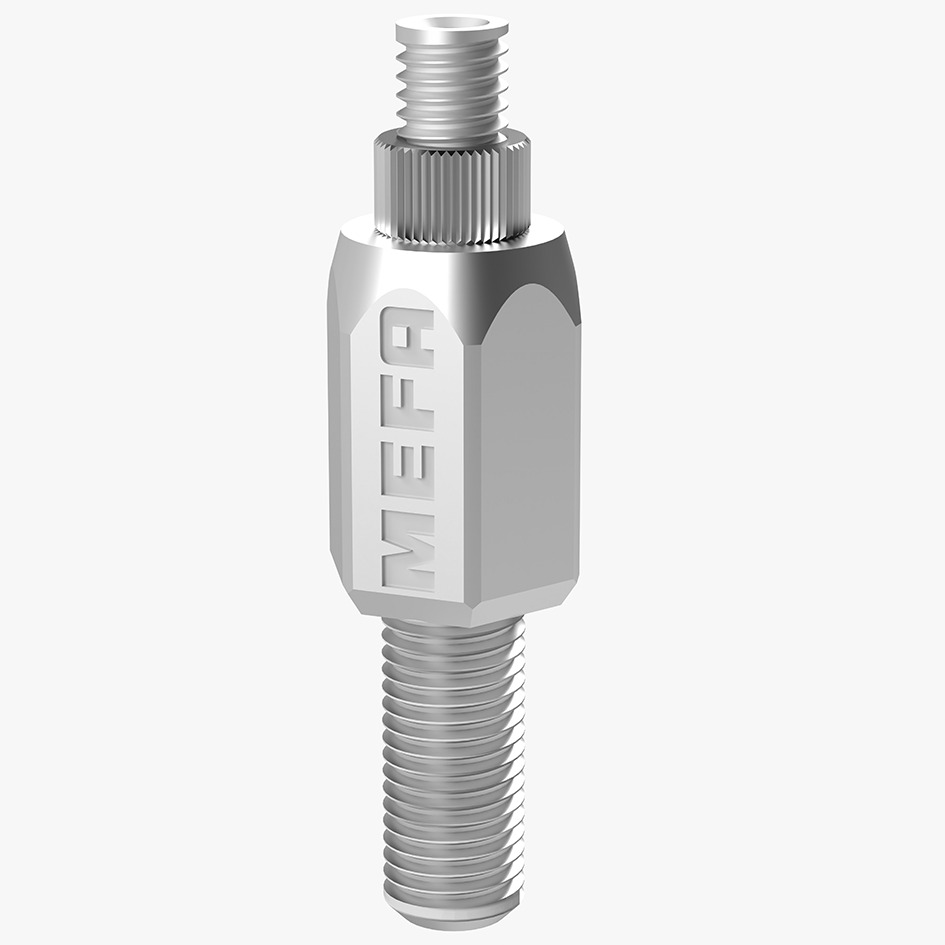

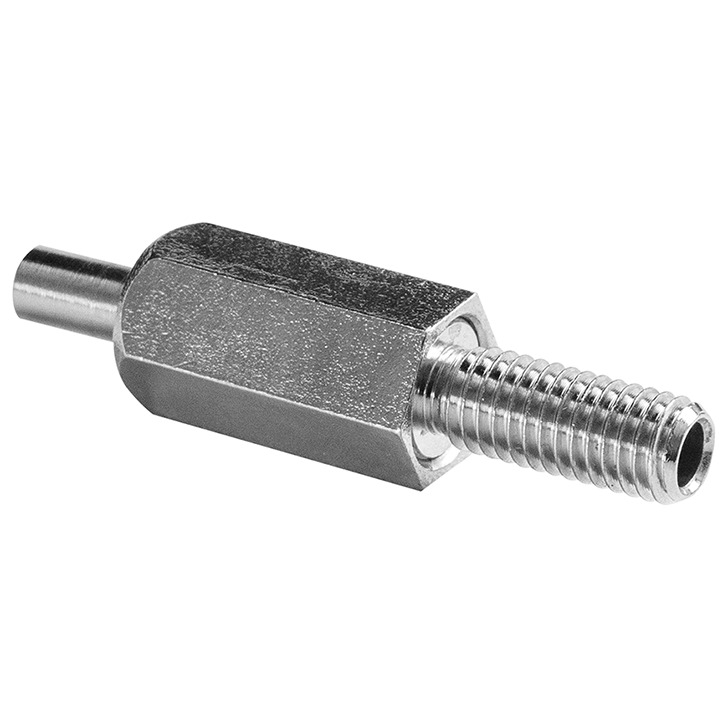

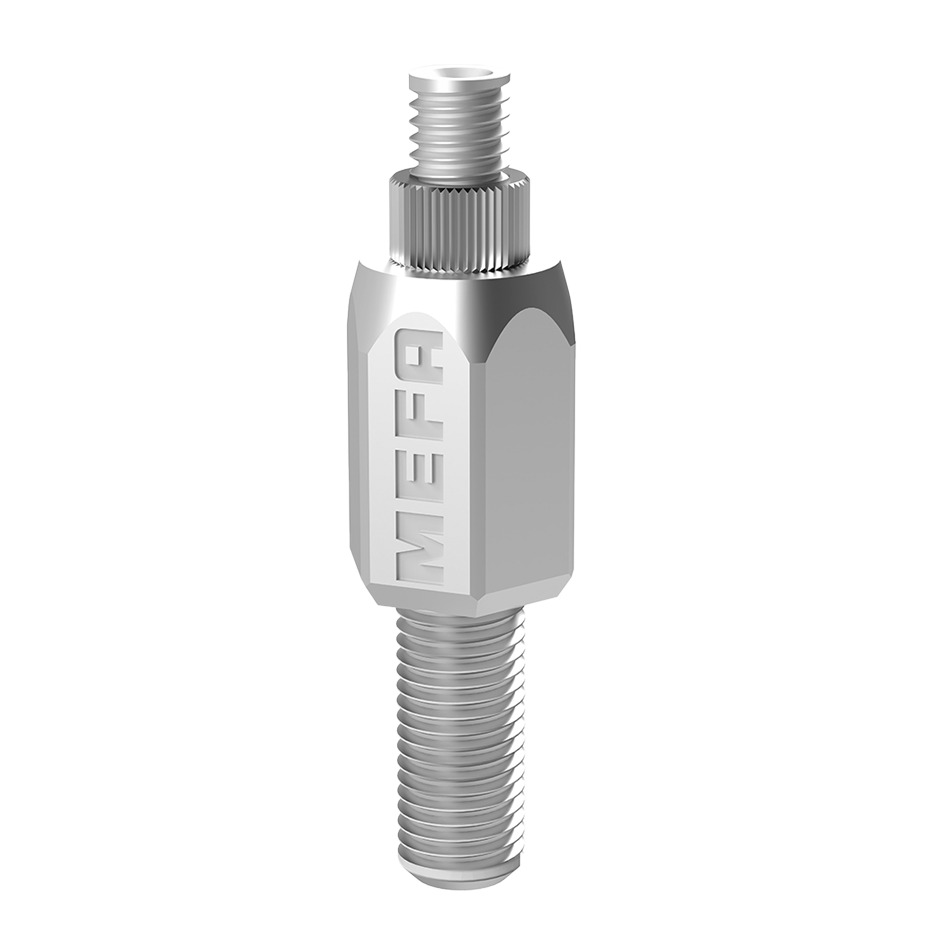

WIRE ROPE L-FIX CONNECTOR AXIAL

Continuously adjustable M8 connector for thread or through holes such as: Mounting rails with Stex GP, threaded and toothed plates, duct holder or device connections.

Ideal in combination with l-fix thread this results in an "adjustable threaded rod".
Wire rope galvanized
For wire-Ø: 1,5 to 2,5 mm
Thread: M8
Thread length: 20 mm
Maximum load: 0,32 kN (for 1,5mm wire rope) and 0,82 kN (for 2,5 mm wire rope)

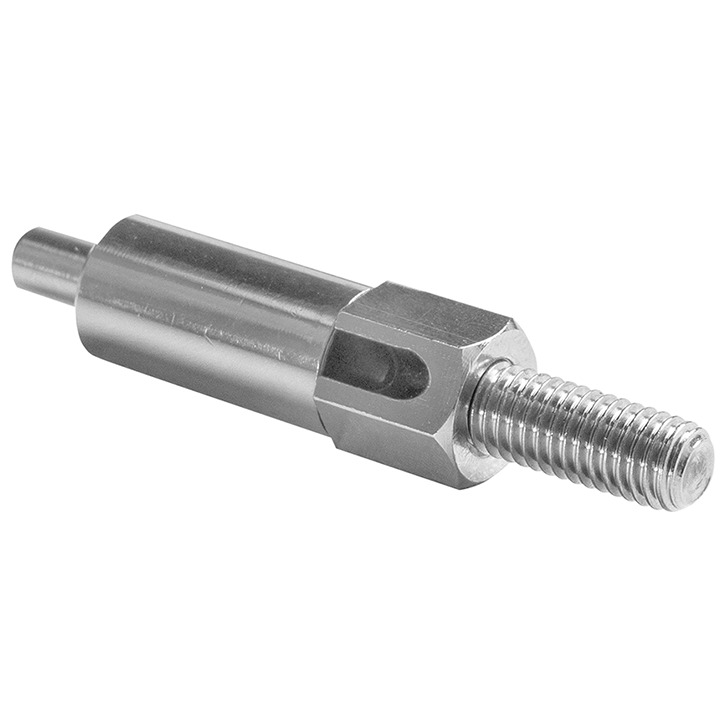

WIRE ROPE L-FIX CONNECTOR TANGENTIAL

For fastening in products with M8 connection such as M8 drop-in anchors, pipe clamps with step thread.

Compared to the connector with axial rope guide enables the connector tangential also then a variable height adjustment, when the rope cannot be passed "through" the product.
Wire rope galvanized
For wire-Ø: 1,5 to 2,5 mm
Thread: M8
Thread length: 20 mm
Maximum load: 0,32 kN (for 1,5mm wire rope) and 0,82 kN (for 2,5 mm wire rope)

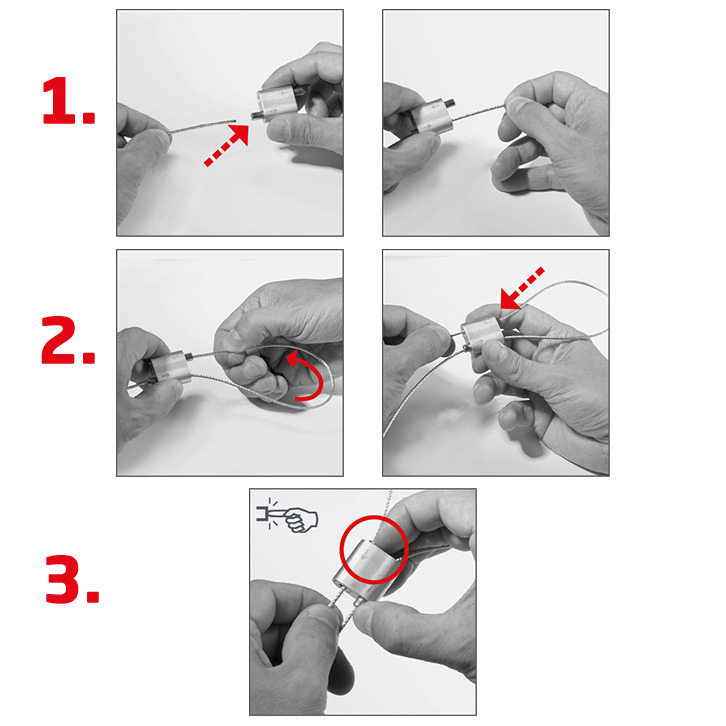

FUNCTIONALITY

Lead cable end through eyelet of the lock. Note direction of the arrow.
Loop the object to be suspended around with the cable and pass it through the other loop of the lock again. Finished!
By pressing the locking mechanism on the lock, it is easily possible to adjust the height flexibly and steplessly.
