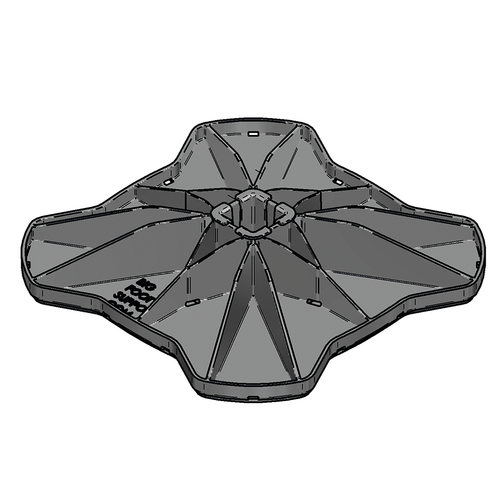

Rooftop holder BIG FOOT® 400
for C-profile 45/45
| Part no. | 08197625 |
| EAN/GTIN | 4250928468925 |
| Packing unit | 2 pcs |
| Quantity unit | pcs |
| Weight | 1,90 kg/pc |
| Product group | 02-081 |
| Price unit | 1 |
Your price
|
|
Product filter:
by Material type
| Application area | for the elevation of supporting structures on flat roofs. |
| Specification | BIG FOOT® with glued EPDM base |
| Profile type | 45 |
| Profile | C-profile |
| Delivery | 1 x holder foot, 1 x adapter for rail system 45 |
| Material | Plastic |
| Material type | Polyamid 6 |
| load FZ | 7,5 kN |

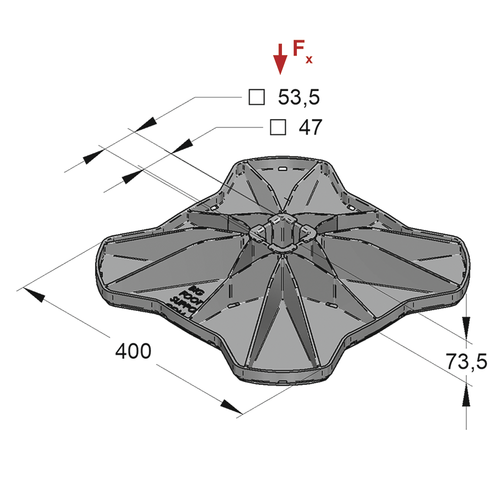

| Length plate | 400 mm |
| Width plate | 400 mm |
| area | 1246,08 cm² |
| Suitable for | C-Profil 45/45 |
| Temperature resistance | -20 - 80 °C |
