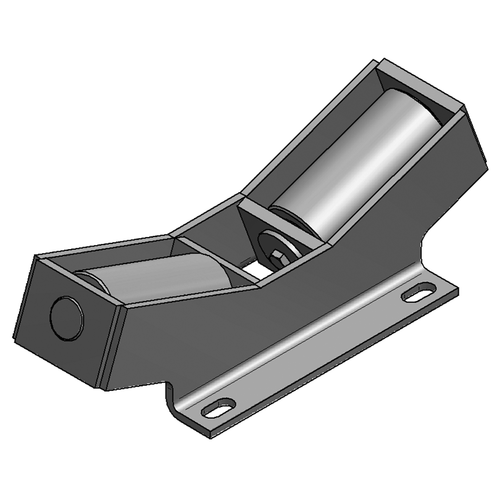

Roller bearing double axial
508 - 965 mm 100 kN hot-dip galv.
| Part no. | 150df100965 |
| EAN/GTIN | 4250928435026 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 25,24 kg/pc |
| Product group | 14-150 |
| Price unit | 1 |
Your price
|
|
Product filter:
| Application area | roller bearing in double design for supporting heavy pipelines on insulation-saddle. |
| Material | Steel |
| Material type | S235 |
| Surface | hot-dip galvanized |
| Height | 145 mm |
| load FZ | 100 kN |
| Length | 478 mm |
| Elongated hole | 18x36 mm |
| Material thickness | 10 mm |
| Safety factor | 1,54 |
| Hole distance lengthwise | 250 mm |
| Hole distance crosswise | 180 mm |
| Width without lugs | 120 mm |
| min. diameter roller support | 508 mm |
| max. diameter roller support | 965 mm |
