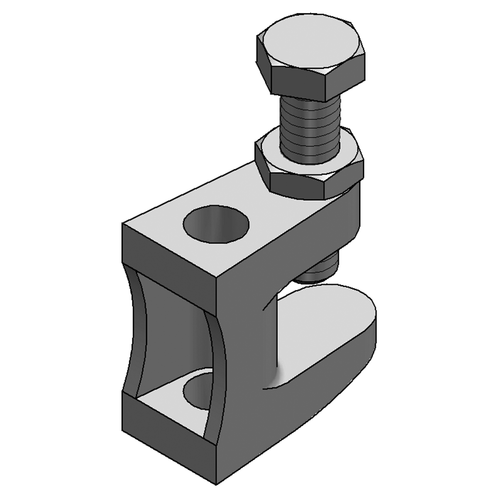

Beam clamp Cast iron TK
Clamping range 1 - 28 mm Hole for M16
| Part no. | 0579448 |
| EAN/GTIN | 4250928414601 |
| Packing unit | 50 pcs |
| Quantity unit | pcs |
| Weight | 0,395 kg/pc |
| Product group | 05-057 |
| Price unit | 1 |
Your price
|
|
Product filter:
| Brand | VS Guss |

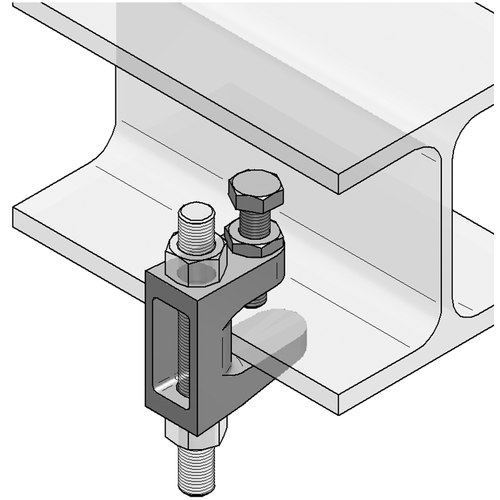

| Application area | fast and simple mounting at steel structures and profiles |
| Type of attachment | with pass hole |
| Delivery | Beam clamp, hexagon bolt, nut |
| Material | Malleable cast iron |
| Surface | galvanized |

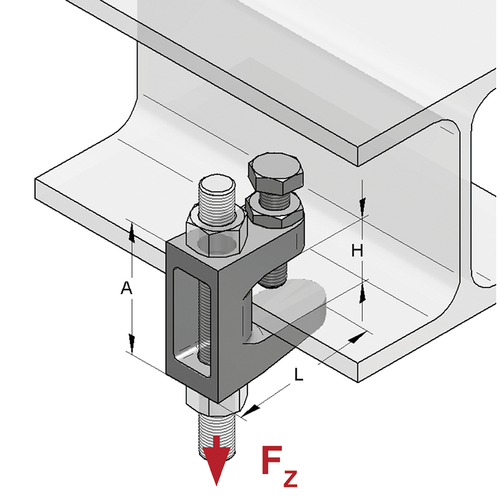

| min. clamping thickness | 1 mm |
| max. clamping thickness | 28 mm |
| Height | 58 mm |
| load FZ | 5,5 kN |
| Thread | for M16 |
| Hole-Ø | 17 mm |
