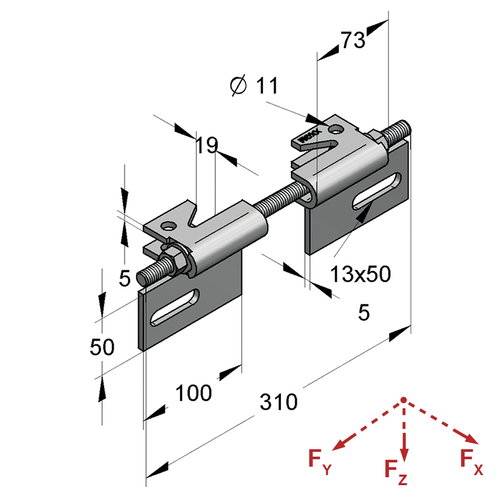

Beam connection IB C-profile 45
Type D III Clamping thickness 8 - 15 mm
| Part no. | 08146103 |
| EAN/GTIN | 4250928420084 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 1,13 kg/pc |
| Product group | 02-081 |
| Price unit | 1 |
Your price
|
|
| Application area | vertical clamping connection of profile rails at steel girder |
| Delivery |
2 x guide cleat 1 x threaded rod FK 8.8 2 x nut 2 x washer |
| Material | Steel |
| Material type | S235 |
| Surface | hot-dip galvanized |
| load F<sub>X</sub> | 4 kN |
| load F<sub>Y</sub> | 4 kN |
| load F<sub>Z</sub> | 4 kN |
| Tightening torque | 64 Nm |
| Threaded rod type | M12x310 |
| Clamping width | 100 - 220 mm |
| Clamping thickness | 8 - 15 mm |
