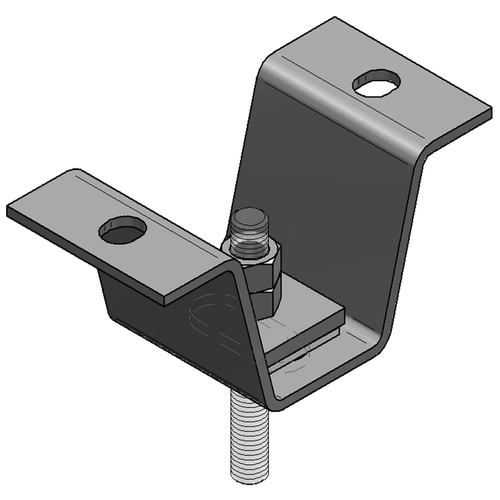

Ceiling hanger TF adjustable height 41 mm
CAD Download
Ceiling hanger TF adjustable height 41 mm
For thread M10
| Part no. | 0816604 |
| EAN/GTIN | 4250928420428 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 0,619 kg/pc |
| Product group | 04-159 |
| Price unit | 100 |
Your price
|
|
| Application area | Solid suspension fastener with sliding path 36 mm. |
| Material | Steel |
| Material type | S235 |
| Surface | galvanized |
| min. temperature resistance | -30 °C |
| max. temperature resistance | 110 °C |
| Static friction factor | 0,2 - 0,3 |

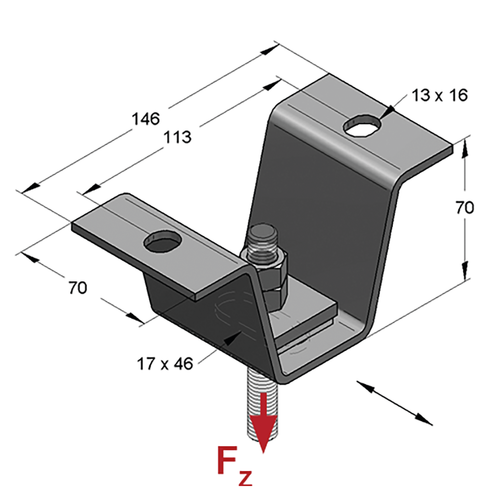

| Width | 70 mm |
| Height | 70 mm |
| load FZ | 12 kN |
| Length | 146 mm |
| For thread | M10 |
| Sliding function | yes |
| Height adjustable | 41 mm |
| Sliding distance | 36 mm |
| Elongated hole 1 | 17x46 mm |
| Elongated hole 2 | 13x16 mm |
| Delivery | Sliding plate, perforated plate and two nuts |
