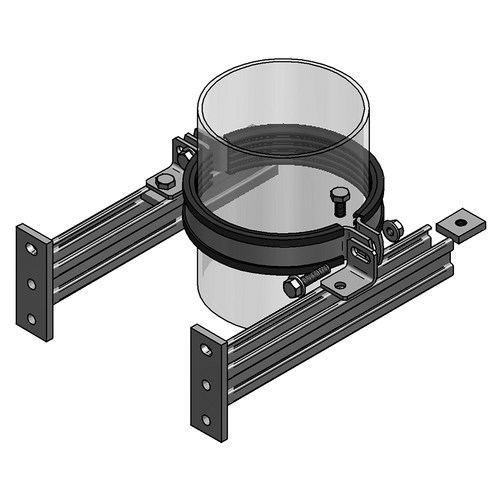

Fixpoint support for downstream piping Set SML

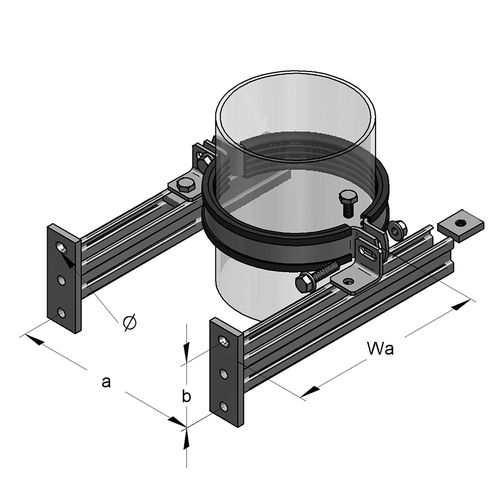

DN 80 / 83 mm Wall distance 75 - 260 mm
| Part no. | 4500800 |
| EAN/GTIN | 4250928439536 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 1,63 kg/pc |
| Product group | 03-450 |
| Price unit | 1 |
Your price
|
|
Product filter:
| Application area | Brackets for the manufacture of a support for sewage downpipes. |
| Material | Steel |
| Surface | galvanized |
| Sound insulation lining | TPE |
| min. temperature resistance | -35 °C |
| max. temperature resistance | 100 °C |
| Thickness material sound insulation lining | 6 mm |
| Class | B2 |
| Colour sound insulation lining | black |
| Material C-profile | S250JR |
| Outer pipe diameter | 83 mm |
| Nominal pipe diameter | 80 mm |
| Hole distance b | 55 mm |
| Length console | 263 mm |
| load F1 | 1,44 kN |
| load F2 | 0,72 kN |
| Console type | C-profile 35/21 |
| Screw type | M10x20 |
| Pipe clamp type | Maxima PSM |
| Distance measure a | 140 mm |
| Type distance angle | Distance angle single 42x35x4 |
| Type of threaded plate | M10 35x30 |
| max. wall distance WA | 260 mm |
| min. wall distance WA | 75 mm |
| Elongated hole | 11x15 mm |
