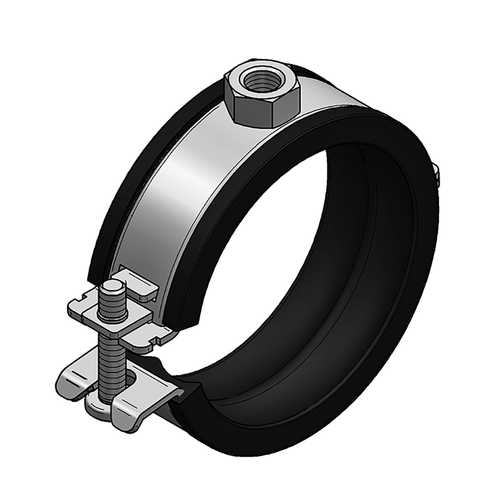

Pipe clamp Sigma 20x1
16 - 19 mm M8 EPDM
| Part no. | 14510191 |
| EAN/GTIN | 4250928432179 |
| Packing unit | 100 pcs |
| Quantity unit | pcs |
| Weight | 0,0290 kg/pc |
| Product group | 01-045 |
| Price unit | 100 |
Your price
|
|
Product filter:
| Application area | Pipe clamp for fixing pipes. |
| Specification | one-part |
| Connection | M8 |
| Closure | Sigma safety quick-closure |
| Material | Steel |
| Material type | DC01-A, DD11 |
| Surface | galvanized |
| Insulation thickness | 3 mm |
| Temperature resistance | -35 °C - 100 °C |
| Sound insulation lining | Rubber EPDM |

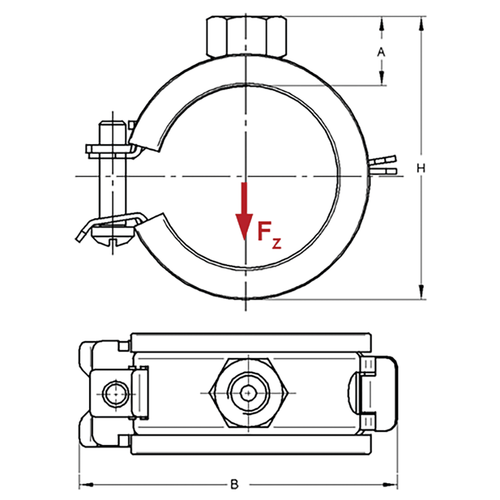

| Connection height A | 12 mm |
| Width B | 45 mm |
| Colour sound insulation lining | black |
| Höhe H | 34 - 37 mm |
| Material dimension | 20x1 mm |
| load FZ | 0,45 kN |
| Clamping range | 16 - 19 mm |
| Outside pipe diameter inch | 3/8 Zoll |
| Closure screw | M5 |
