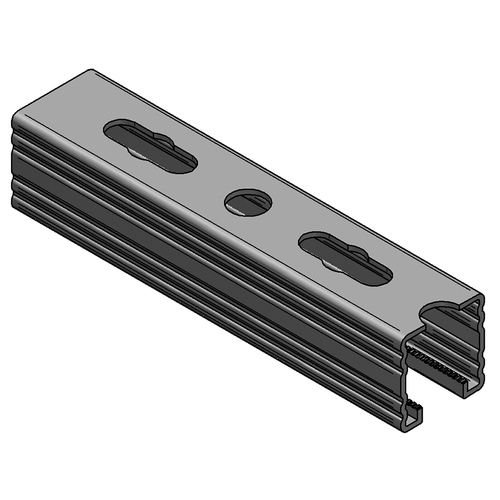

Profile rail C-profile

45 / 45 / 2,5 mm L= 3 m hot-dip galv.

Part no. 0820453252
EAN/GTIN 4250928448064
Packing unit 30 m
Bundle 180 m
Quantity unit m
Weight 3,21 kg/m
Product group 02-082
Price unit 1

Your price

Quantity (m):

Product filter:

Application area Medium weight mounting rail with quick connection option.
Specification C-profile rail, perforated and toothed
Type of attachment form-locking connections and shear hole haunch connections
Material Steel
Material type S235
Surface hot-dip galvanized

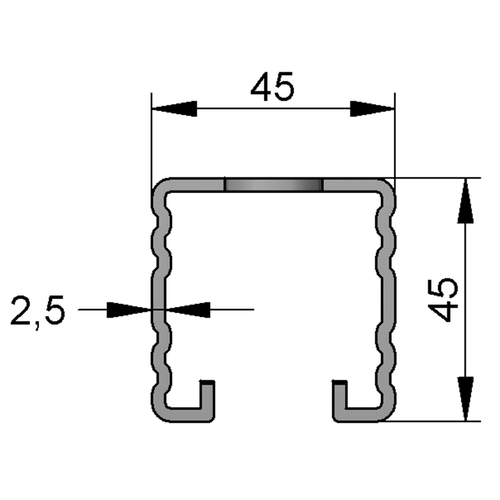

Width 45 mm
Height 45 mm
Thickness 2,5 mm
Length 3 m

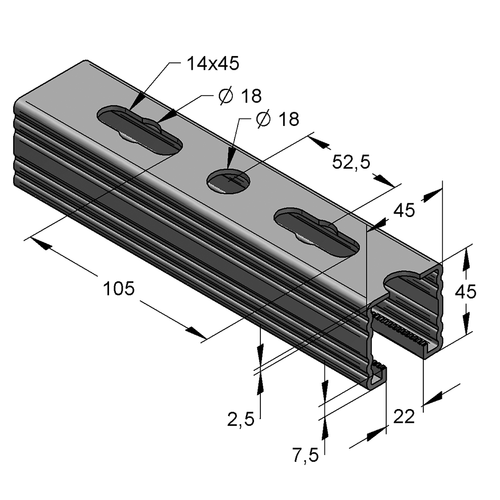

Hole-Ø 14,00 mm
Elongated hole 14x45 mm
Expansion elongated hole 18,0 mm
Area (least cross section of the profile rail) 3,53 cm²
Axial angular impulse l<sub>Y</sub> 8,81 cm4
Axial angular impulse l<sub>Z</sub> 12,69 cm4
Grid dimension 52,5 mm
Rail slot width 22 mm
Centroid distance eo 2,19 cm
Centroid distance eu 2,31 cm
Centroid distance ez 2,25 cm
Elastic limit 250 N/mm²
Radius of inertia iy 1,58 cm
Radius of inertia iz 1,90 cm
Section modulus W<sub>Y</sub> 3,80 cm³
Section modulus W<sub>Z</sub> 5,64 cm³
Notice Full bundles, only
