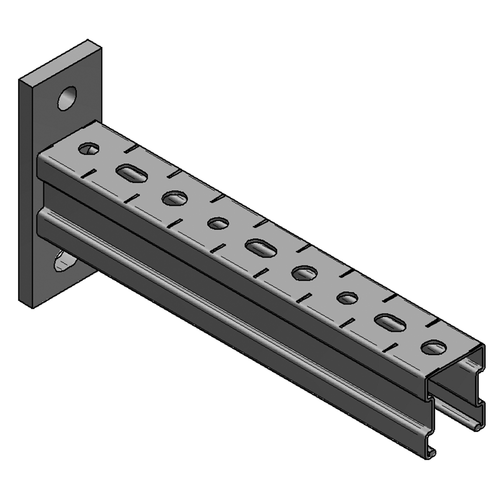

Console Stex 35/42
L= 225 mm Plate vertical galv.
Part no. | 12760225 |
EAN/GTIN | 4250928424532 |
Packing unit | 20 pcs |
Quantity unit | pcs |
Weight | 0,630 kg/pc |
Product group | 02-127 |
Price unit | 1 |
Your price
Application area | Console for the production of cantilever structures for the support of suspended and standing pipe loads. |
Material | Steel |
Surface | galvanized |

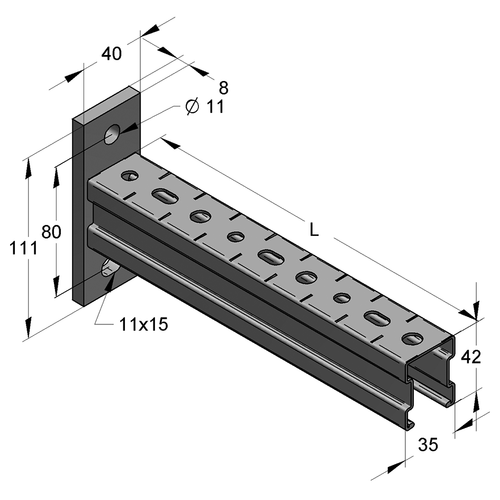

Width plate | 40 mm |
Length plate | 111 mm |
Hole distance | 80 mm |
Plate thickness | 8 mm |
Width profile | 35 mm |
Profile height | 42 mm |
Length console L | 225 mm |
Elongated hole plate | 11x15 mm |
load F1 | 2,78 kN |
load F2 | 1,39 kN |
load q0 | 12,35 kN/m |
Profile thickness | 1,5 mm |
