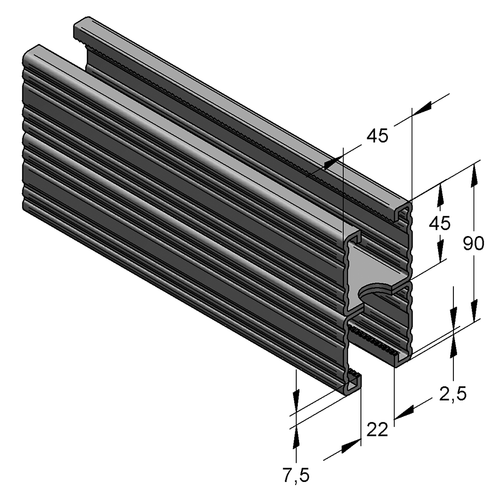

Profile rail C-profile double
45 / 90 / 2,5 mm L= 6 m hot-dip galv.
| Part no. | 0821902625 |
| EAN/GTIN | 4250928448149 |
| Packing unit | 24 m |
| Bundle | 180 m |
| Quantity unit | m |
| Weight | 6,35 kg/m |
| Product group | 02-082 |
| Price unit | 1 |
Your price
|
|
Product filter:
by Surface
| Application area | Medium weight mounting rail with quick connection option. |
| Specification | Toothed C-profile rail. double rails are perforated and welded. |
| Type of attachment | form-locking connections and shear hole haunch connections |
| Material | Steel |
| Material type | S235 |
| Surface | hot-dip galvanized |

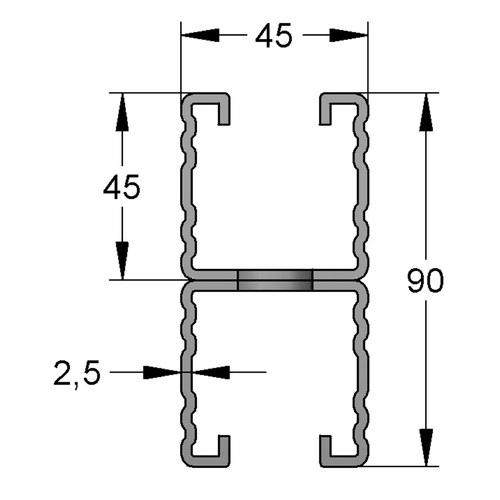

| Width | 45 mm |
| Height | 90 mm |
| Thickness | 2,5 mm |
| Length | 6 m |
| Hole-Ø | 18,00 mm |
| Elongated hole | 14x45 mm |
| Expansion elongated hole | 18,0 mm |
| Area (least cross section of the profile rail) | 7,05 cm² |
| Axial angular impulse l<sub>Y</sub> | 55,61 cm4 |
| Axial angular impulse l<sub>Z</sub> | 25,37 cm4 |
| Grid dimension | 52,5 mm |
| Rail slot width | 22 mm |
| Centroid distance eo | 4,50 cm |
| Centroid distance eu | 4,50 cm |
| Centroid distance ez | 2,25 cm |
| Elastic limit | 250 N/mm² |
| Radius of inertia iy | 2,81 cm |
| Radius of inertia iz | 1,90 cm |
| Section modulus W<sub>Y</sub> | 12,35 cm³ |
| Section modulus W<sub>Z</sub> | 11,27 cm³ |
| Notice | Full bundles, only |
