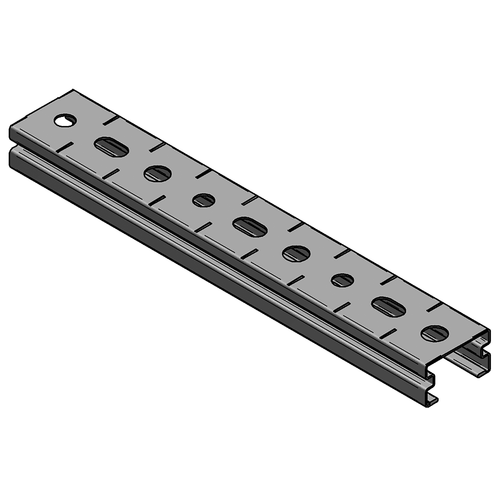

Profile rail C-profile Stex
35 / 20 / 0,8 mm L= 2 m pre-galv.
| Part no. | 1273520 |
| EAN/GTIN | 4250928424419 |
| Packing unit | 12 m |
| Bundle | 336 m |
| Quantity unit | m |
| Weight | 0,640 kg/m |
| Product group | 02-127 |
| Price unit | 1 |
Your price
|
|
| Application area | ightweight profile rail with quick connection option. |
| Specification | Marking for fi t-up aid and to cut rails |
| Type of attachment | glide fast connection |
| Material | Steel |
| Material type | S250 |
| Surface | pre-galvanized |

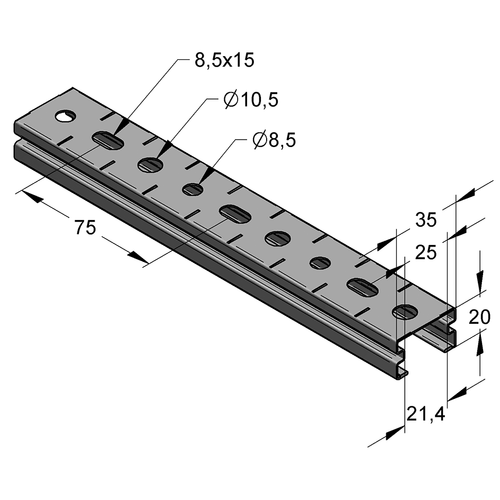

| Width | 35 mm |
| Height | 20 mm |
| Thickness | 0,8 mm |
| Length | 2 m |
| Hole-Ø | 8,5 mm |
| Hole diameter 1 | 8,5 mm |
| Hole diameter 2 | 10,5 mm |
| Elongated hole | 8,5x15 mm |
| Area (least cross section of the profile rail) | 0,74 cm² |
| Axial angular impulse ly | 0,4 cm4 |
| Axial angular impulse lz | 1,53 cm4 |
| Grid dimension | 25 mm |
| Rail slot width | 21 mm |
| Centroid distance eo | 0,97 cm |
| Centroid distance eu | 1,03 cm |
| Centroid distance ez | 1,75 cm |
| Elastic limit | 250 N/mm² |
| Radius of inertia iy | 0,74 cm |
| Radius of inertia iz | 1,44 cm |
| Section modulus Wy | 0,39 cm³ |
| Section modulus Wz | 0,87 cm³ |
| Notice | Full bundles, only |
