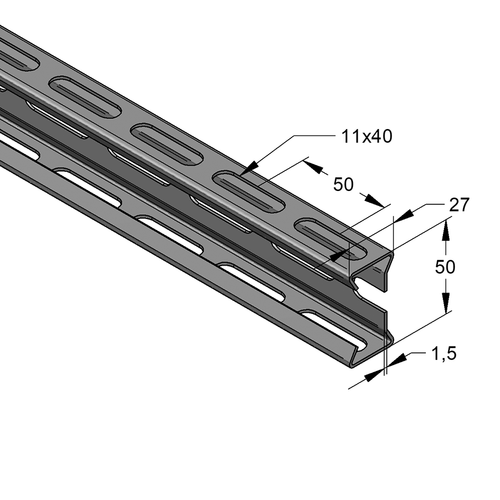

| Width |
27 mm
|
| Height |
50 mm
|
| Thickness |
1,5 mm
|
| Length |
6 m
|
| Elongated hole |
11x40 mm
|
| Area (least cross section of the profile rail) |
1,29 cm²
|
| Axial angular impulse l<sub>Y</sub> |
5,01 cm4
|
| Axial angular impulse l<sub>Z</sub> |
1,26 cm4
|
| Grid dimension |
50 mm
|
| Rail slot width |
11 mm
|
| Centroid distance eo |
2,5 cm
|
| Centroid distance eu |
2,5 cm
|
| Centroid distance ez |
1,54 cm
|
| Elastic limit |
250 N/mm²
|
| Radius of inertia iy |
1,97 cm
|
| Radius of inertia iz |
1,37 cm
|
| Section modulus W<sub>Y</sub> |
2,01 cm³
|
| Section modulus W<sub>Z</sub> |
0,87 cm³
|
