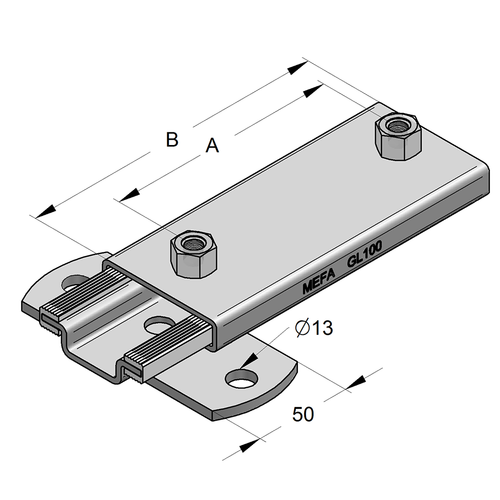

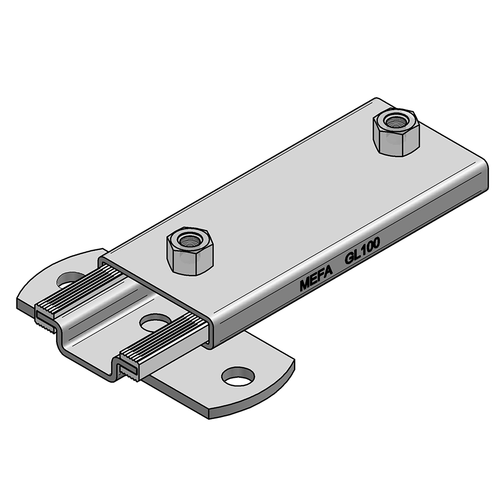

Slider axial GL 100
Connection 2 x 1/2'' with lug
| Part no. | 0770611 |
| EAN/GTIN | 4250928418142 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 0,790 kg/pc |
| Product group | 04-174 |
| Price unit | 1 |
Your price
|
|
| Application area | absorption of axial length expansion for standing, hanging, horizontal or vertical passed pipes |
| Specification | with lug |
| Surface | galvanized |
| Material sliding element | Steel |
| Material type sliding element | S235 |
| Material sliding stripe | Plastic |
| Material name sliding stripe | Polyamide 6 |
| min. temperature resistance | -30 °C |
| max. temperature resistance | 110 °C |
| Width | 125 mm |
| Length | 160 mm |
| Construction height | 41 mm |
| Connection | 2 x 1/2'' |
| Number of connections | 2 |
| Thread | 1/2'' |
| Static friction factor | 0,2 - 0,3 |
| max. sliding distance axial | 68 mm |
| load Fz | 3 kN |
| Hole-Ø | 13 mm |
