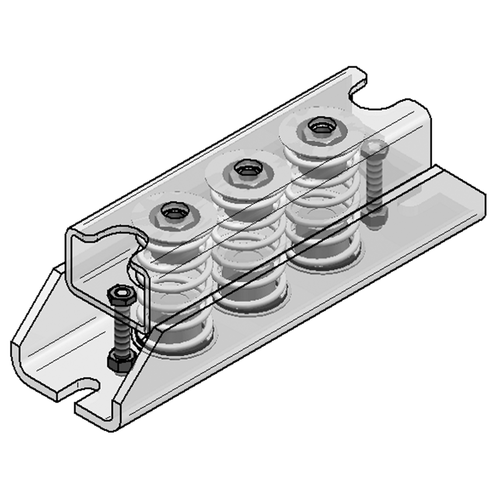

Spring bearing FL Type 1 - 1000
F 0 - 1023 N max. spring deflection 26,5 mm
| Part no. | 07919010 |
| EAN/GTIN | 4250928419019 |
| Packing unit | 1 pcs |
| Quantity unit | pcs |
| Weight | 3,12 kg/pc |
| Product group | 03-079 |
| Price unit | 1 |
Your price
|
|
| Application area | Spring isolators for the elevation of piping or aggregates. |

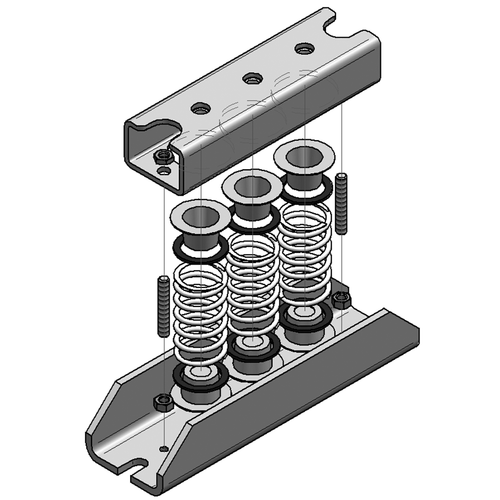

| Number of springs | 3 |
| Material | Steel |
| Material type | S235 |
| Surface | galvanized |

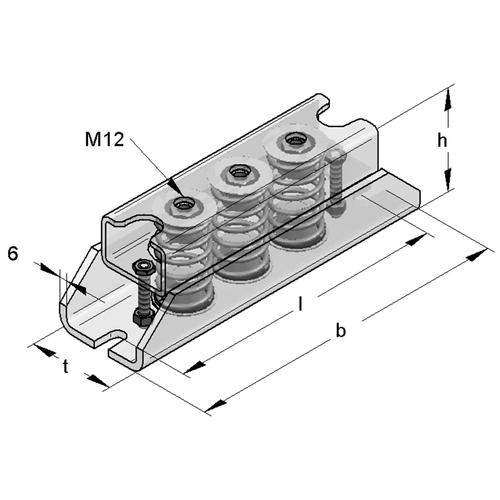

| Connection | M12 |
| Width | 78 mm |
| Height | 83 mm |
| Length | 260 mm |
| Spring rate | 38,61 N/mm |
| max. spring deflection | 26,5 mm |
| max. load range | 1023 N |
