Z-Guides Set U-bolt XL 100
For sliding element width from 140 mm
| Part no. | 14799140 |
| EAN/GTIN | 4250928449443 |
| Packing unit | 1 set |
| Quantity unit | set |
| Weight | 1,09 kg/set |
| Product group | 14-147 |
| Price unit | 1 |
Your price
|
|

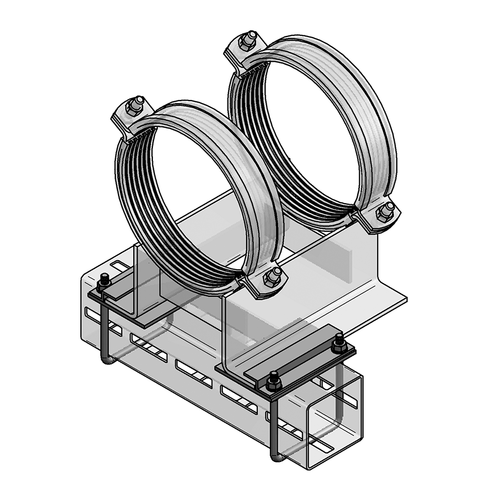

| Application area | Guiding of sliding elements on CENTUM® XL 100 or square tube 100 or CENTUM® XL 120 upright. |
| Material | Steel |
| Material type | S235 |
| Surface | Zinc-Nickel |
| min. temperature resistance | -30 °C |
| max. temperature resistance | 110 °C |
| Thread | M10 |
| Length thread | 40 mm |
| Hole-Ø | 10,5 mm |
| Thickness | 3 mm |
| Static friction factor | 0,2 - 0,3 |
| Center distance U-bolt | 116 mm |
| Center distance hole | 116 mm |
| For max. plate thickness | 16 mm |
| load FZ | 4,5 kN |
| For sliding element width from | 140 mm |
| Width Z-guides | 64,5 mm |
| Profile type | XL 100 |
| Height U-bolt | 136 mm |
| Height Z-guides | 22 mm |
| Length Z-guides | 150 mm |
